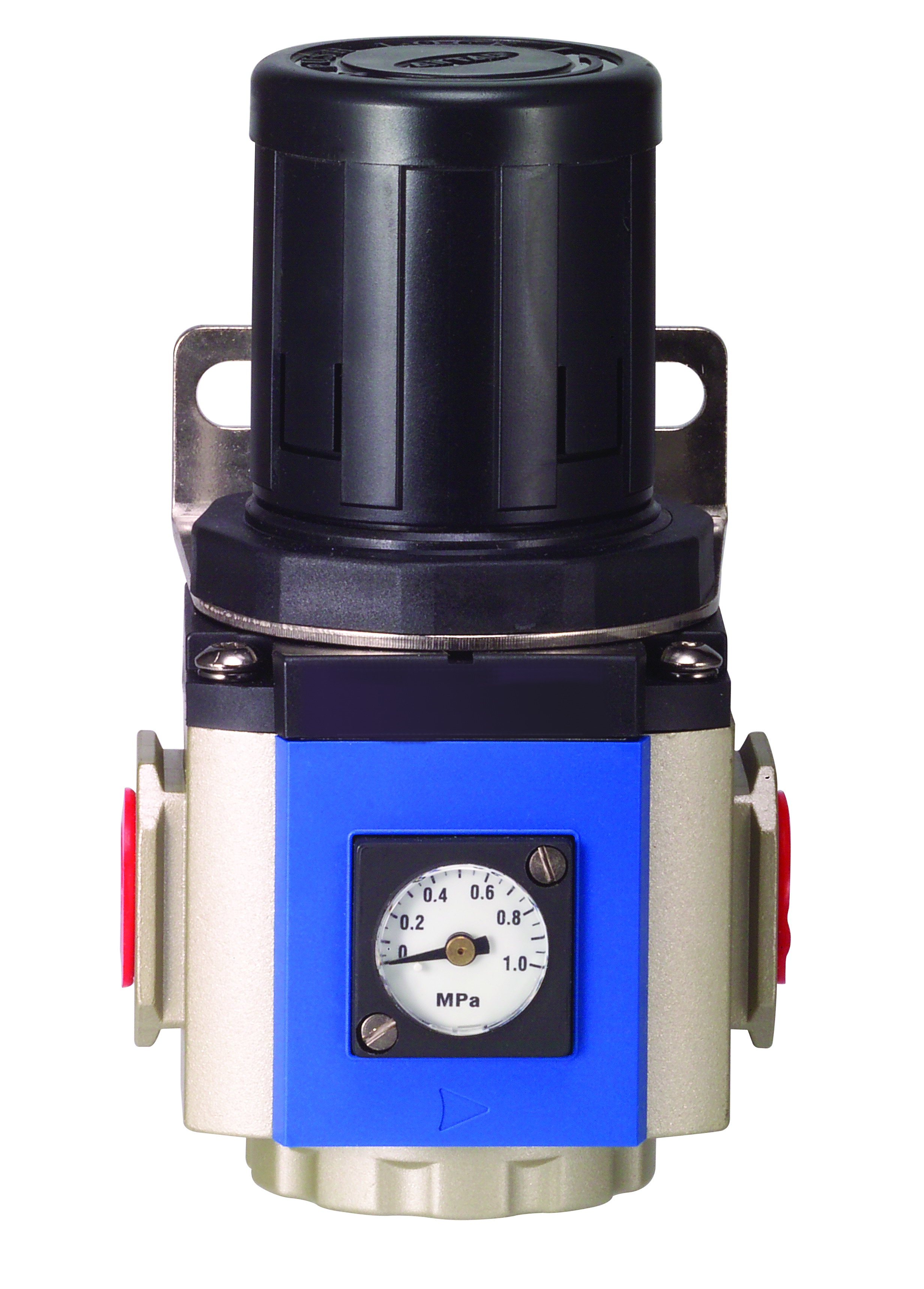

F.R.L GRS 400 Series Regulator
Model :
GRS-400
ㆍEmbedded square pressure gauge is used to save installation space. (Externalcircular pressure gauge is also optional)
ㆍThe pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
ㆍBalanced design is adopted for the pressure adjustment mechanism.
ㆍIn addition to panel installation, the bracket is optional for installation.
ㆍIn addition to standard type, lower pressure type is optional (the highest adjustable pressure is 0.4MPa)
| Model Number | Fluid | Port Size | Filtering Grade | Pressure Range | Max Pressure | Proof Pressure | Temperature | Weight |
| GRS 400-10 | Air | 3/8" | 40µ, 5µ | 1.5 - 9 Bar | 10 Bar | 15 Bar | 5 - 60°C | 720g |
| GRS 400-15 | Air | 1/2" | 40µ, 5µ | 1.5 - 9 Bar | 10 Bar | 15 Bar | 5 - 60°C | 720g |
| Item / Model | GRS 400 |
| Valve Cap | Aluminum Alloy |
| Body | Aluminum Alloy |
| Spool | POM |
| Diaphragm | SUS304 covered with rubber |
| Fixed Ring | PA66 + G15 |
| Adjusting Spindle | HPB59-1 |
| Pressure Knob | POM |
| Adjusting Seat | POM |
| Pressure Plug | Brass + NBR |
| Pressure Plug O-ring | Stainless Steel |
ㆍUse pneumatic tools and equipment.
ㆍRequire clean air to be delivered to your facility or workplace.
