Hybrid Air Hose
What Is a Hybrid Air Hose?
A Hybrid Air Hose is a fiber-reinforced PVC hose used for compressed-air supply to pneumatic tools and equipment. It is commonly used in applications that involve frequent hose movement and repeated coiling and uncoiling.
Typical Applications of Hybrid Air Hose
- Air supply lines for pneumatic tools
- Extension lines for factory compressed-air systems
- Air supply lines for equipment maintenance and on-site operations
- Outdoor or low-temperature applications
Hybrid Air Hose Construction Design
Hybrid Air Hose features a three-layer reinforced construction with a fiber reinforcement layer positioned between the inner and outer PVC layers. The reinforcement layer limits radial expansion under pressure and helps the hose maintain dimensional stability.
Three-Layer Structure
- Inner Layer: PVC inner tube
- Middle Layer: Fiber reinforcement layer
- Outer Layer: PVC protective outer layer
Hybrid Air Hose Material and Handling Characteristics
Hybrid Air Hose uses a PVC formulation that allows the hose to maintain flexibility at low temperatures. The material also provides abrasion resistance and weather resistance for general industrial and outdoor applications.
The PVC formulation also gives the hose low memory, allowing it to remain straight after uncoiling rather than retaining a coiled shape. This makes the hose suitable for applications involving frequent movement and repeated coiling and uncoiling.
For another fiber-reinforced pneumatic hose made from a different material, please refer to Reinforced PU Air Hose.
Hybrid Air Hose Selection Guide
Supply Configuration
Hybrid Air Hose is available as bulk hose without fittings or as a finished hose assembly with pre-installed fittings.
HB Series (Without Fittings)
Supplied as bulk hose, suitable for on-site cutting and fitting assembly.
HBA Series (Pre-Assembled Hose Assembly)
Supplied with fittings assembled before shipment, ready for direct installation.
Hose I.D. Selection
Different pneumatic tools require different airflow rates. Selecting an appropriate hose I.D. helps reduce pressure drop and maintain equipment performance.
| Airflow Requirement | Metric I.D. | Inch I.D. | Typical Applications |
|---|---|---|---|
| Standard Flow | 6.5–8 mm | 1/4"–5/16" | DIY and small pneumatic tools |
| Medium Flow | 10 mm | 3/8" | Automotive repair shops and medium-sized pneumatic tools |
| High Flow | 12.5 mm | 1/2" | Industrial equipment and large pneumatic tools |
For detailed dimensions, working pressure ratings, and available packaging lengths, please refer to the HB and HBA product specifications below.
Further Reading
→ Pneumatic Tubing Overview (Selection Criteria and Classification)
→ Hybrid Air Hose FAQ | Low-Temperature Performance, Working Pressure, and Fitting Selection
Hybrid Air Hose
ㆍThree-layer PVC braided pneumatic hose
ㆍFiber reinforcement layer designed to support pneumatic working-pressure requirements
ㆍStable hose shape under pressure variations with reduced localized deformation
ㆍFormulated for low-temperature use to maintain flexibility in cold environments
ㆍLow memory for applications involving repeated pulling and coiling

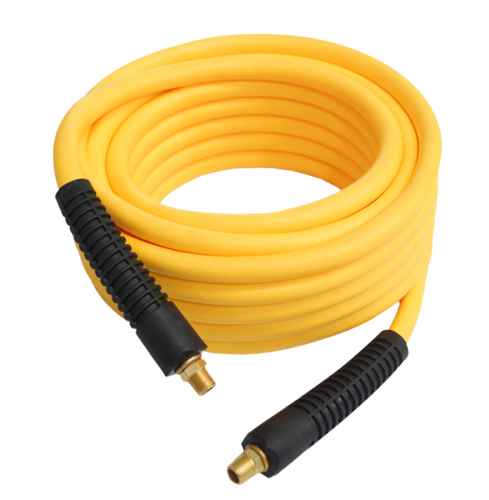

Hybrid Air Hose Assembly
ㆍThree-layer PVC braided pneumatic hose with pre-assembled fittings
ㆍFiber reinforcement layer for higher working-pressure applications
ㆍStable hose shape under pressure variations with reduced localized deformation
ㆍFormulated for low-temperature use to maintain flexibility in cold environments
ㆍLow memory for applications involving repeated pulling and coiling
