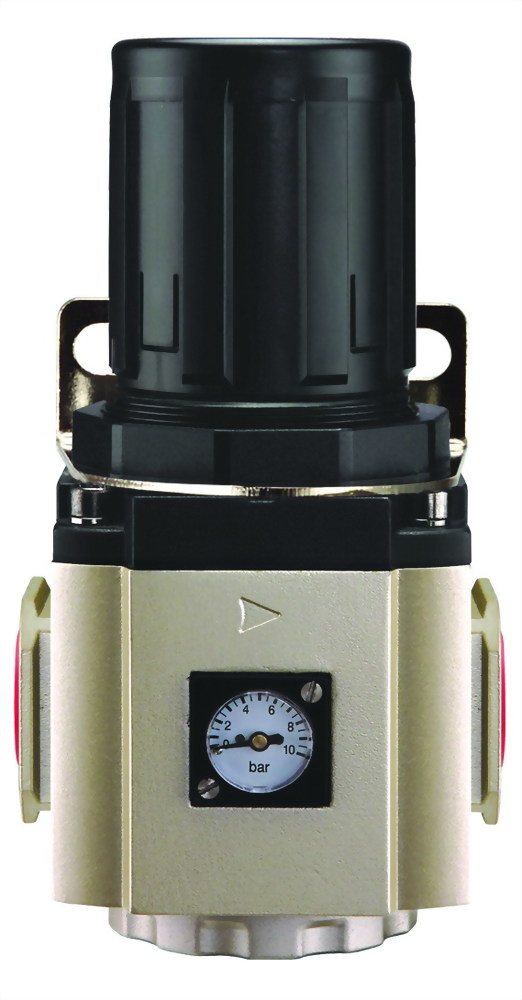

• F.R.L GRS 600 Series Regulator

F.R.L GRS 600 Series Regulator

Model : GRS-600

ㆍEmbedded square pressure gauge is used to save installation space. (Externalcircular pressure gauge is also optional)

ㆍThe pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

ㆍBalanced design is adopted for the pressure adjustment mechanism.

ㆍIn addition to panel installation, the bracket is optional for installation.

ㆍIn addition to standard type, lower pressure type is optional (the highest adjustable pressure is 0.4MPa)

Model Number Fluid Port Size Filtering Grade Pressure Range Max Pressure Proof Pressure Temperature Weight
GRS 600-20 Air 3/4" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 1110g
GRS 600-25 Air 1" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 1110g

Item / Model GRS 600
Valve Cap Aluminum Alloy
Body Aluminum Alloy
Spool POM
Diaphragm SUS304 covered with rubber
Fixed Ring Aluminum Alloy
Adjusting Spindle HPB59-1
Pressure Knob POM
Adjusting Seat Aluminum Alloy
Pressure Plug Brass + NBR
Pressure Plug O-ring Stainless Steel

ㆍUse pneumatic tools and equipment.

ㆍRequire clean air to be delivered to your facility or workplace.
