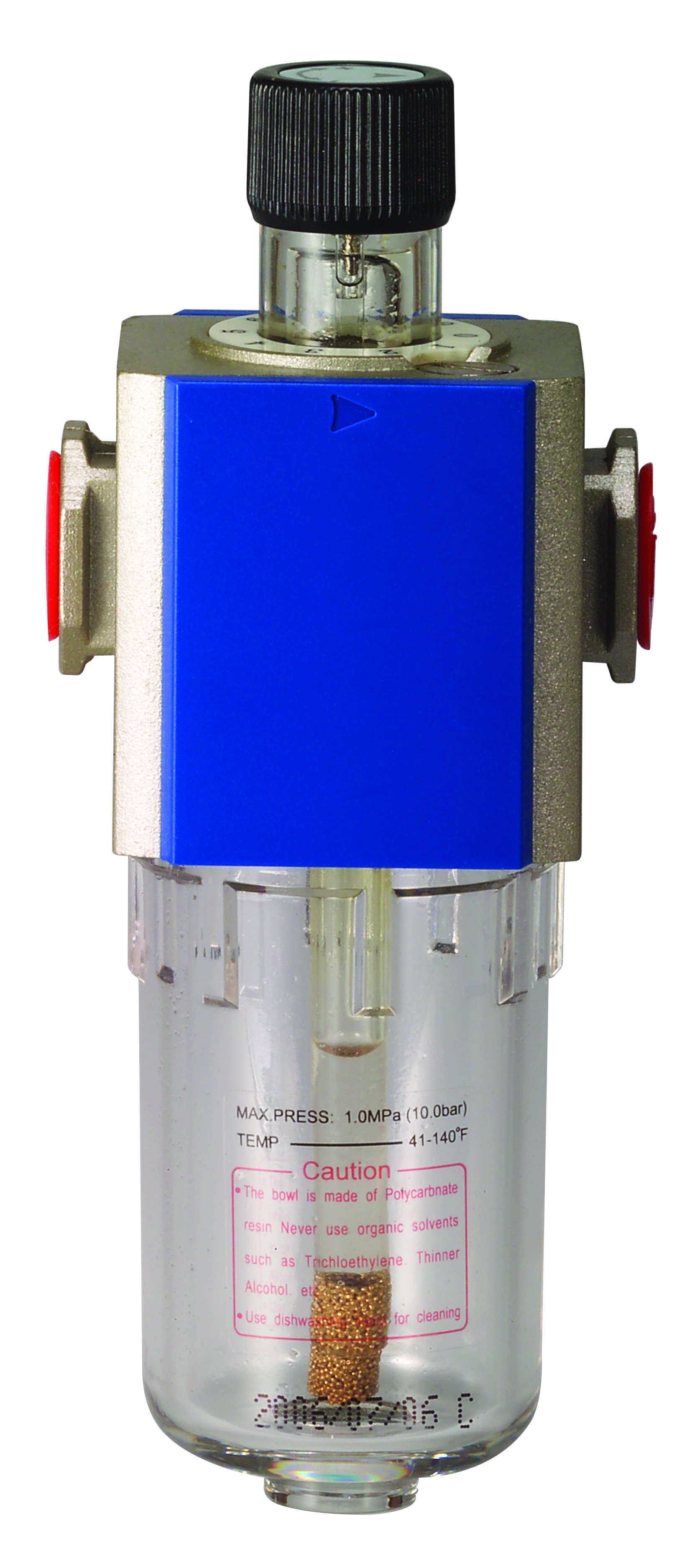

F.R.L GLS 400 Series Lubricator
Model :
GLS-400
ㆍThe structure of oil dripping adopts gap seal type, which makes the adjustment of oil supply more reliable.
ㆍAdjustable ring for oil supply can only revolve for one circle. The quantity of oil supply basically takes on linear distribution.
ㆍThe quantity of oil supply can be generally calculated according to the position of graduation ring.
ㆍSpecial drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.
ㆍIt is available to add oil under pressure, and the oil bowl is large.
ㆍThe bracket can be selected for installation.
| Model Number | Fluid | Port Size | Pressure Range | Proof Pressure | Temperature | Recommended Lubricant | Oil Bowl Capacity | Weight |
| GLS 400-10 | Air | 3/8" | 1.5 - 9 Bar | 15 Bar | 5 - 60°C | ISO VG 32 or equivalent | 160cc | 670g |
| GLS 400-15 | Air | 1/2" | 1.5 - 9 Bar | 15 Bar | 5 - 60°C | ISO VG 32 or equivalent | 160cc | 670g |
| Item / Model | GLS 400 |
| Oil Bowl | PC |
| Body | Aluminum Alloy |
| Distance Block | TPU |
| Drip Pipe | PC |
| Ejector Pin | Brass |
| Indicating Ring | POM |
| Adjusting Ring | POM |
| Bowl | PC |
| Sprayer Body | POM |
| Sprayer Bottom Cap | POM |
| Bowl Guard | SPCC |
ㆍUse pneumatic tools and equipment.
ㆍRequire clean air to be delivered to your facility or workplace.
