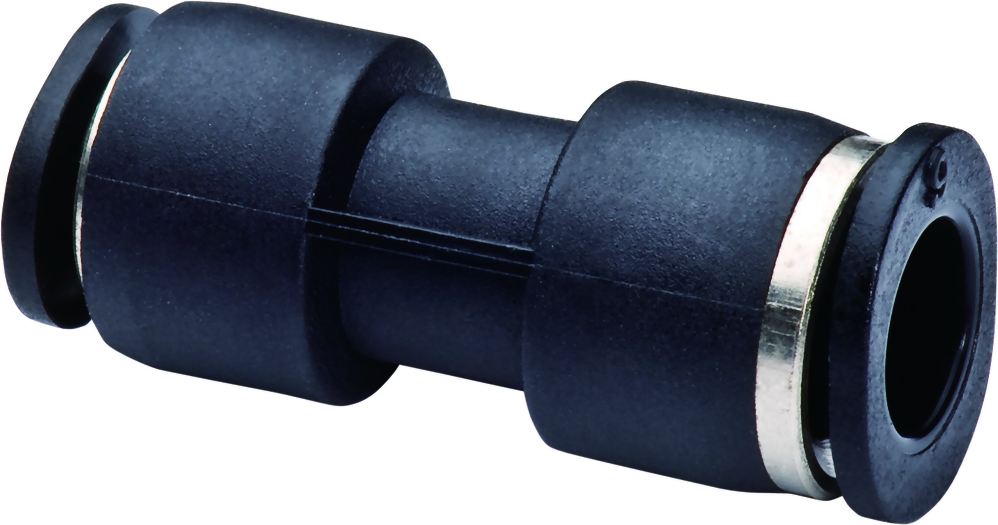

• One Touch Fitting PG reducer

One Touch Fitting PG reducer

Model : PG-comapct

ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C

Model Number ØD ØD2 E Q'ty per bag Q'ty per box
PG 04-03C 4 3 27.3 10 100
PG 06-04C 6 4 27.5 10 100

ㆍOne-Touch push-to-connect configuration allows for an instant tubing connection
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍApplicable Fluid Type / Air (No other type of gas or liquid)
