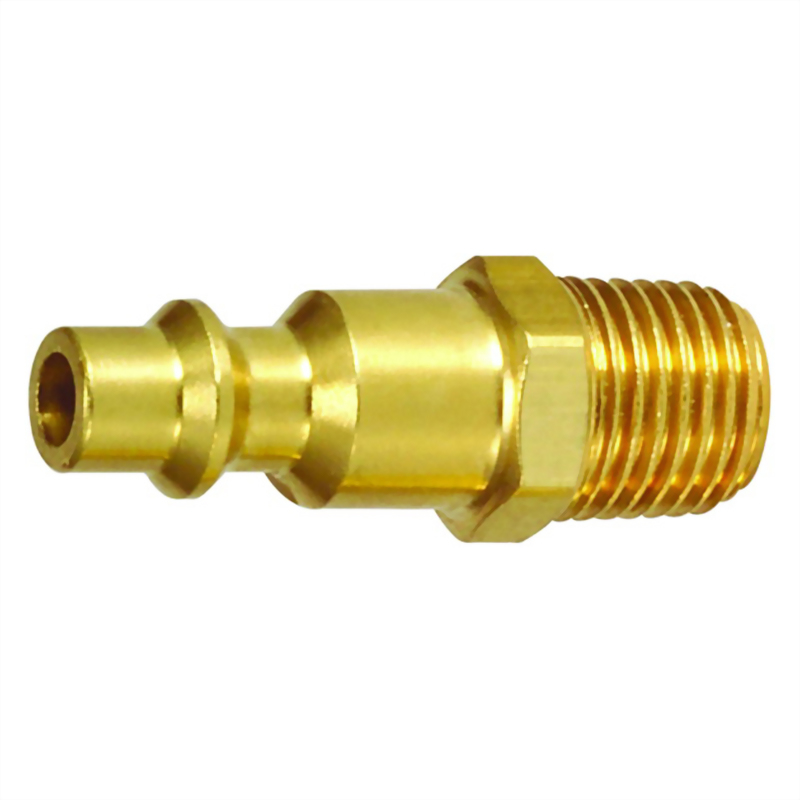

Quick Plug MP male series
Model :
MP-M
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
ØB
(mm)
|
| MP20M | 1/4" | 39.2 | 14 | 11 | 1/4 NPT | 8 |
| MP30M | 3/8" | 41.7 | 17 | 12.5 | 3/8 NPT | 11 |
| MP40M | 1/2" | 44.2 | 21 | 14 | 1/2 NPT | 14 |
ㆍPlugs are matched to MC. MIC. MOC 1/4" body system quick coupler.
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
