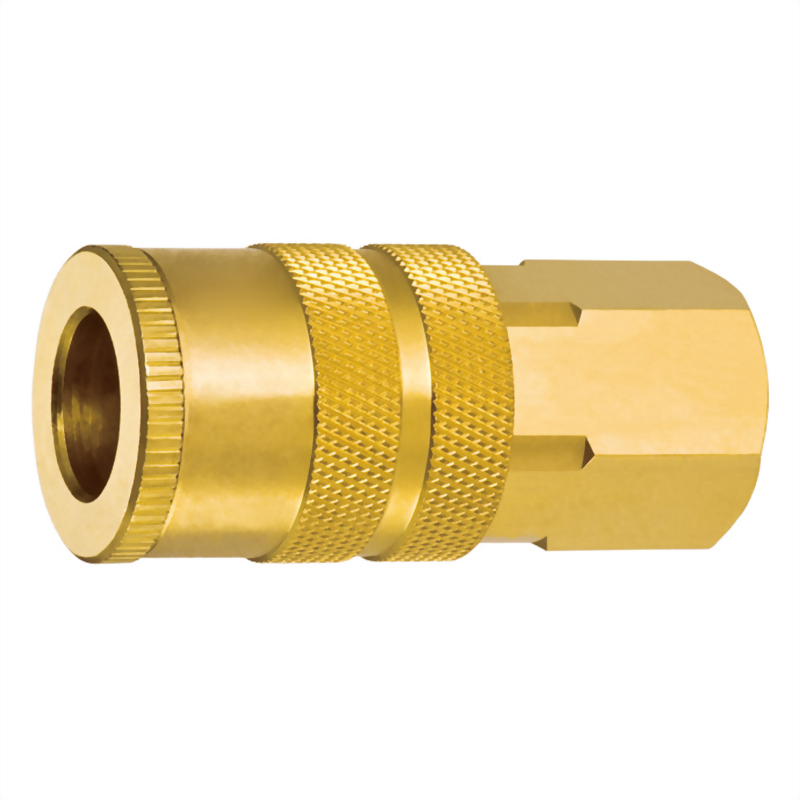

Quick Coupler 30MC female series
Model :
30MC-F
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
| 30MC20F | 1/4" | 58 | 22 | 13 | 1/4 NPT |
| 30MC30F | 3/8" | 59.5 | 22 | 14.5 | 3/8 NPT |
| 30MC40F | 1/2" | 62.5 | 25.4 | 15.5 | 1/2 NPT |
ㆍTwo touch type
ㆍ3/8" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍ3/8" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
