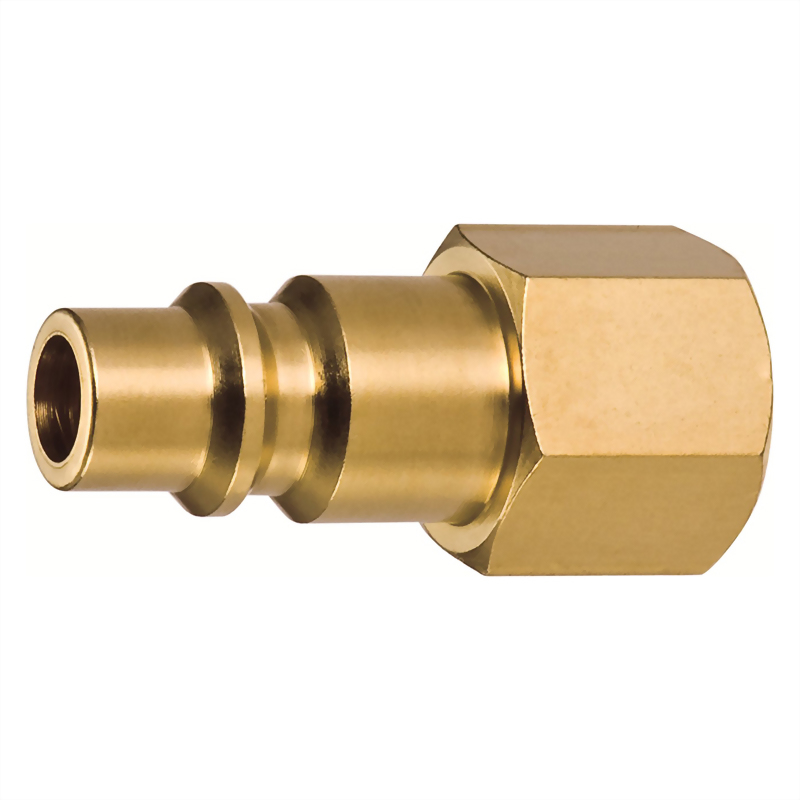

Quick Plug 30MP female series

Model : 30MP-F

M-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).

M-system quick coupler includes traditional two touch type and push-in one touch type.

Push-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.

Model Number Application
L
(mm)
H (Hex)
(mm)
A
(mm)
T
(mm)
30MP20F 1/4" 42 17.5 13 1/4 NPT
30MP30F 3/8" 42.5 20 14.5 3/8 NPT

ㆍPlugs are matched to MC. MIC. MOC 3/8" body system quick coupler.

Brass material

Max. working pressure: 300 PSI

ㆍPneumatic tools

Air hose/ tube

ㆍAir pressure equipment
