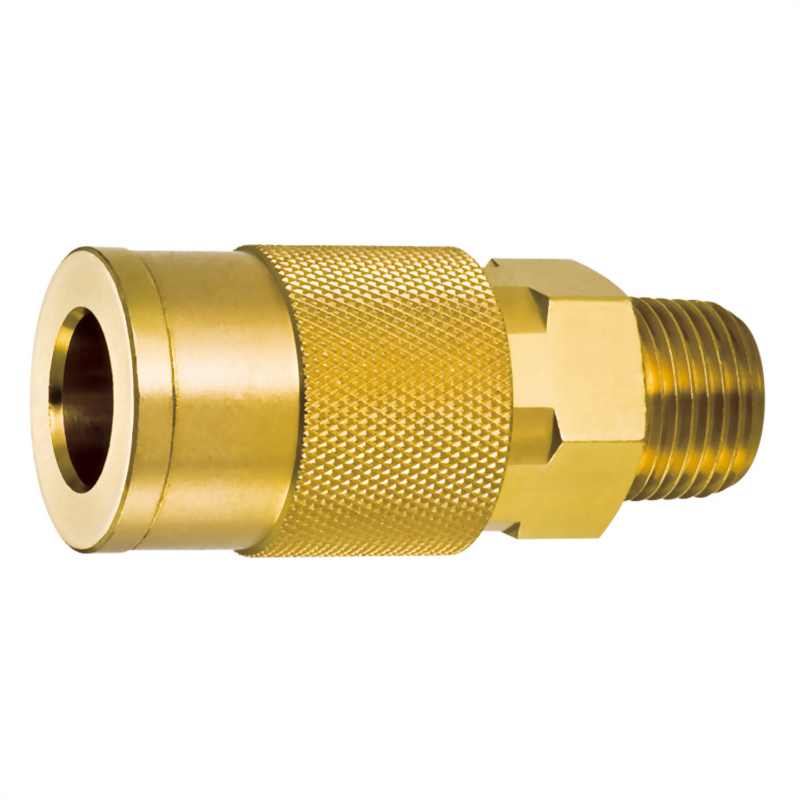

Quick Coupler 40MIC male series
Model :
40MIC-M
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
A
(mm)
|
T
(Thread)
|
ØB
(mm)
|
| 40MIC20M | 1/4" | 68.3 | 13 | 1/4 NPT | 8 |
| 40MIC30M | 3/8" | 69.8 | 14.5 | 3/8 NPT | 11 |
| 40MIC40M | 1/2" | 70.8 | 15.5 | 1/2 NPT | 14 |
ㆍTwo touch type
ㆍ1/2" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍ1/2" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
