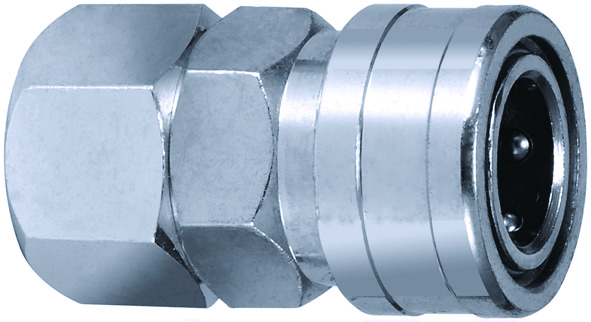

• Quick Coupler NSC female swivel series

Quick Coupler NSC female swivel series

Model : NSC-FS

ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.

ㆍA.K.A. :

                Air Quick Coupler / Quick Disconnect Coupling
                Quick Disconnector / Quick Connect
                Air Quick Coupling / Air Connectors & fitting
                Quick coupling / Pneumatic couplings

Model Number Application
L
(mm)
H (Hex)
(mm)
A
(mm)
T
(Thread)
NSC20FS 1/4" 67.5 19 13 1/4 PT
NSC30FS 3/8" 68.5 19 14 3/8 PT
NSC40FS 1/2" 68.5 23 15 1/2 PT

ㆍOne touch type
ㆍLock mechanism
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI


ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
