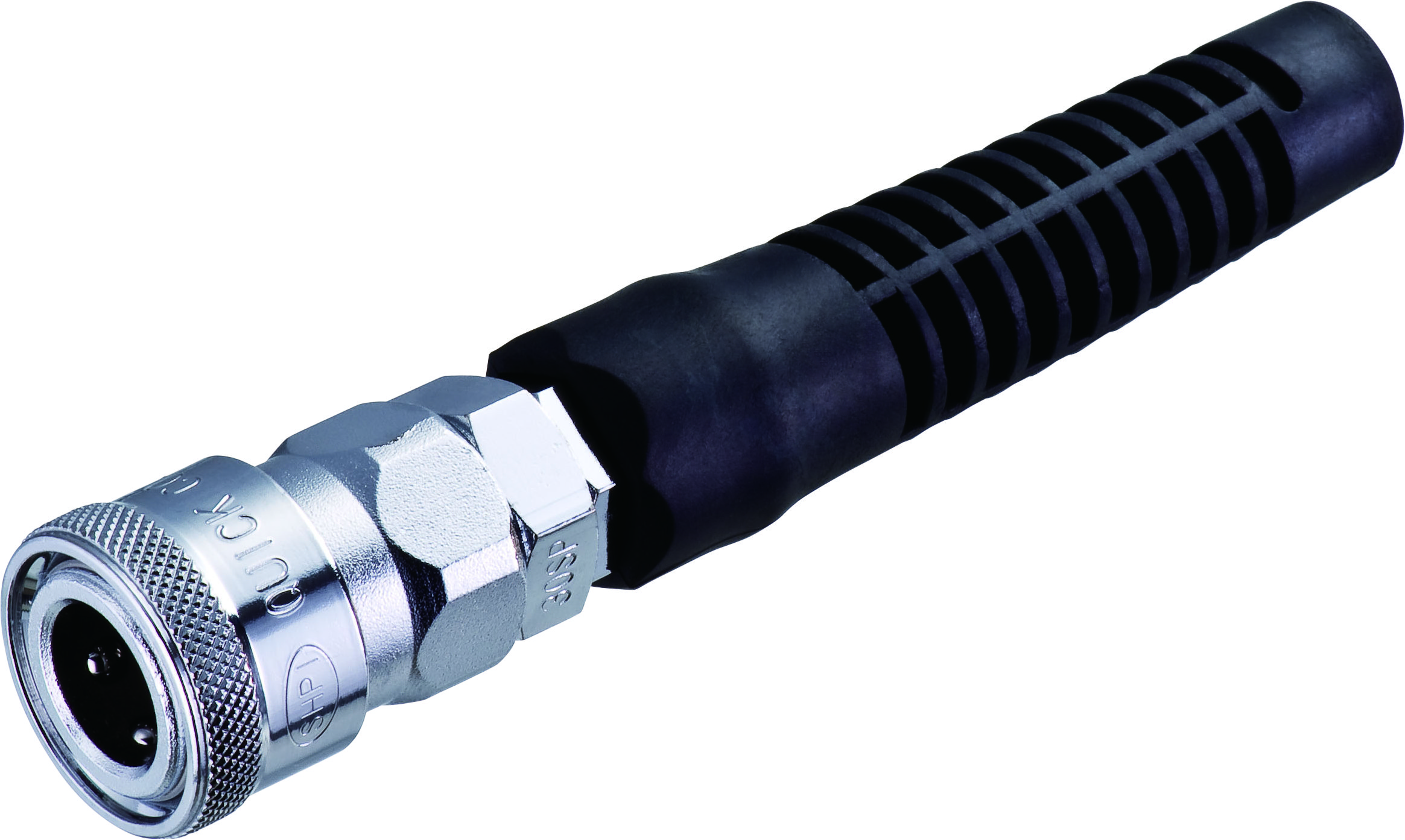

Quick Plug NP plastic guard series
Model :
NP-PG
ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
| Model Number | Material | Application |
ØD
(mm)
|
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
ØB
(mm)2
|
| NP20PG | Steel | 5mm*8mm | 18.3 | 123.5 | 14 | 96 | 4 |
| NP30PG | Steel | 6.5mm*10mm | 21.6 | 115.5 | 5/8 | 89 | 5 |
| NP40PG | Steel | 8mm*12mm | 24.5 | 122 | 19 | 94 | 6.5 |
| NP45PG | Steel | 8.5mm*12mm | 24.5 | 122 | 19 | 94 | 6.5 |
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
