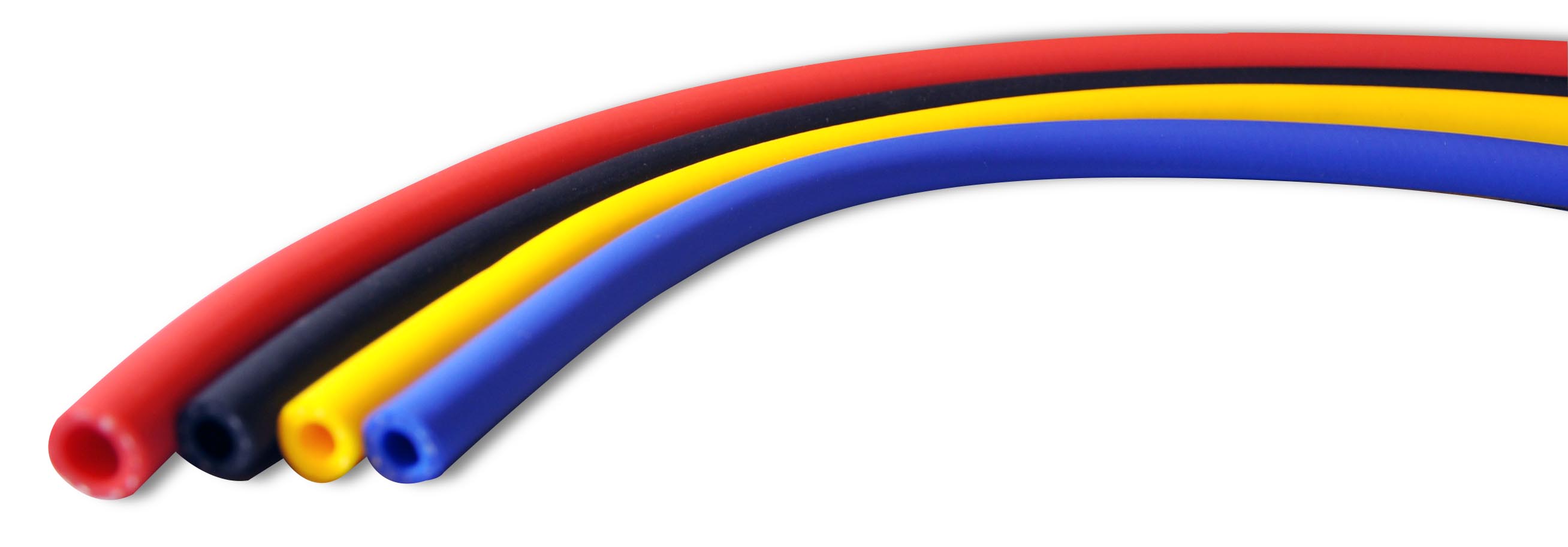

Hybrid Air Hose Assembly

※ Click the product image to view more specs and technical details.

ㆍThree-layer PVC braided pneumatic hose with pre-assembled fittings
ㆍFiber reinforcement layer for higher working-pressure applications
ㆍStable hose shape under pressure variations with reduced localized deformation
ㆍFormulated for low-temperature use to maintain flexibility in cold environments
ㆍLow memory for applications involving repeated pulling and coiling

Model : HBA

Q'ty :

The Hybrid Air Hose Assembly is a three-layer pneumatic hose with a fiber reinforcement layer between the inner and outer PVC layers. It supports higher working-pressure conditions and helps control diameter expansion under working pressure.

This structure helps maintain a stable hose profile under pressure variations, reducing diameter changes or localized deformation.

The PVC formulation is designed for low-temperature use, allowing the hose to remain flexible in cold environments. The material formulation and reinforced structure serve complementary functions, supporting low-temperature operation and the pressure resistance required for pneumatic systems.

In addition, the hose has low memory. Even after repeated pulling and coiling, it can remain straight when laid out.

The product is assembled with fittings before shipment, reducing the need for on-site fitting assembly.

For related connection accessories, please refer to:

→ Coupler & Plug

Available in inch and mm sizes
Working Pressure : Safety factor 3 to 1

Imperial Size (in)

Model Number	Tube ID	Max. Working Pressure 73°F	Packing Length	Fittings	Color
+Color	inch	psi	ft		BK	BU	R	Y
HBA1425FT_	1/4	300	25	1/4 NPT	■	■	■	■
HBA1450FT_			50
HBA14100FT_			100
HBA3825FT_	3/8	300	25	3/8 NPT	■	■	■	■
HBA3850FT_			50
HBA38100FT_			100
HBA1225FT_	1/2	300	25	3/8 NPT, 1/2 NPT	■	■	■	■
HBA1250FT_			50
HBA12100FT_			100

Metric Size (mm)

Model Number	Tube ID	Max. Working Pressure 23°C (73°F)	Packing Length	Fittings	Color
+Color	mm	bar	m		BK	BU	R	Y
HBA6510M_	6.5	20	10	1/4 PT	■	■	■	■
HBA6515M_			15
HBA6520M_			20
HBA6530M_			30
HBA8010M_	8.0	20	10	1/4 PT	■	■	■	■
HBA8015M_			15
HBA8020M_			20
HBA8030M_			30
HBA1010M_	10.0	20	10	3/8 PT	■	■	■	■
HBA1015M_			15
HBA1020M_			20
HBA1030M_			30
HBA12510M_	12.5	20	10	3/8 PT, 1/2 PT	■	■	■	■
HBA12515M_			15
HBA12520M_			20
HBA12530M_			30

ㆍThree-layer braided construction helps control diameter changes under working pressure and maintain the hose profile
ㆍPVC formulation designed for low-temperature use, maintaining flexibility in cold environments
ㆍThe material formulation and reinforced structure serve complementary functions, supporting low-temperature operation and the pressure resistance required for pneumatic systems
ㆍLow-memory hose characteristics suitable for repeated pulling and coiling
ㆍPre-assembled with fittings to reduce on-site fitting assembly

ㆍCompressed-air supply for pneumatic tools
ㆍAir-supply extension for temporary workstations or work areas
ㆍOn-site compressed-air supply applications involving frequent pulling, movement, or coiling
ㆍPneumatic tool air supply in low-temperature or winter operating environments
