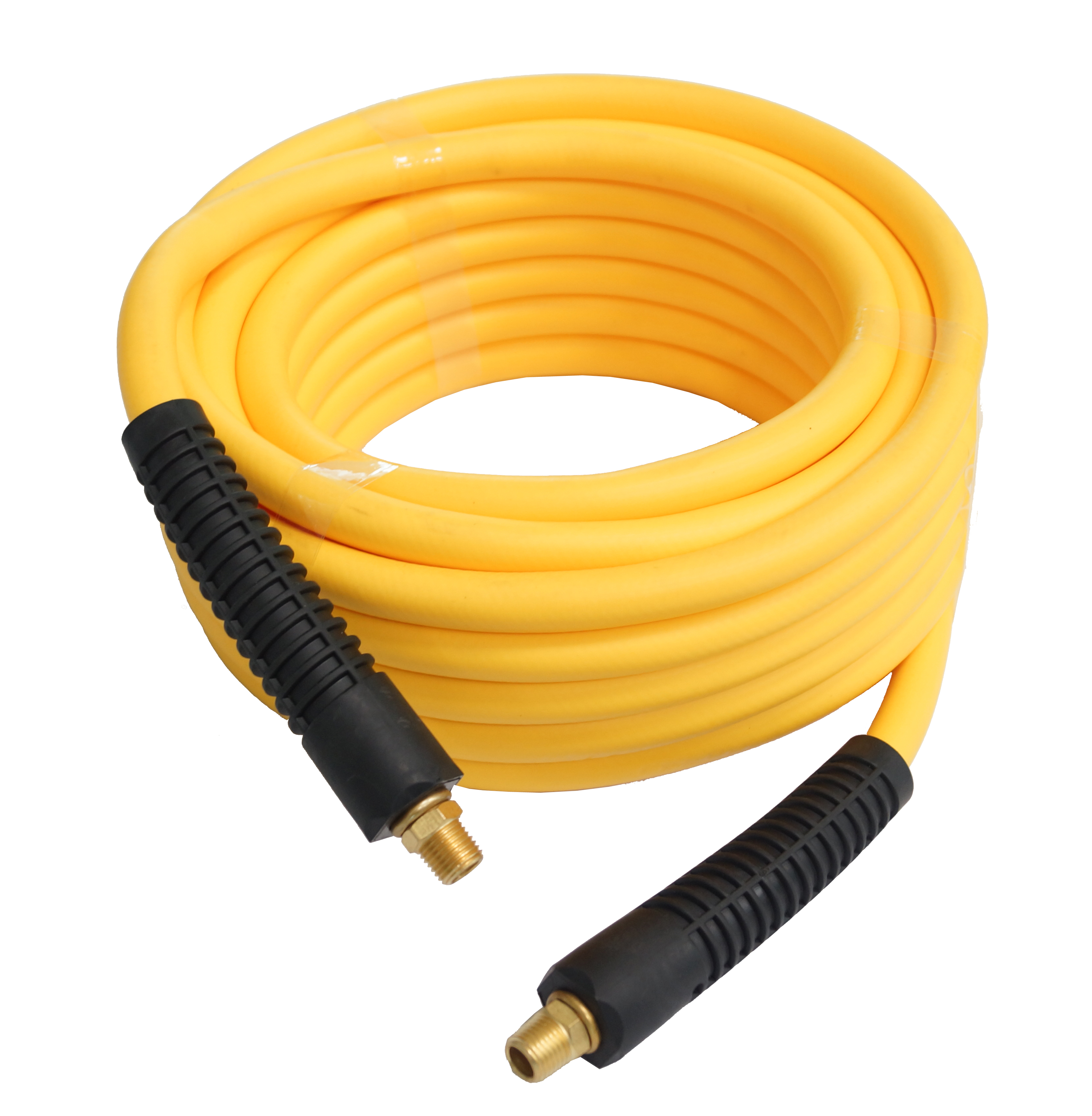

Hybrid Air Hose

※ Click the product image to view more specs and technical details.

ㆍThree-layer PVC braided pneumatic hose
ㆍFiber reinforcement layer designed to support pneumatic working-pressure requirements
ㆍStable hose shape under pressure variations with reduced localized deformation
ㆍFormulated for low-temperature use to maintain flexibility in cold environments
ㆍLow memory for applications involving repeated pulling and coiling

Model : HB

Q'ty :

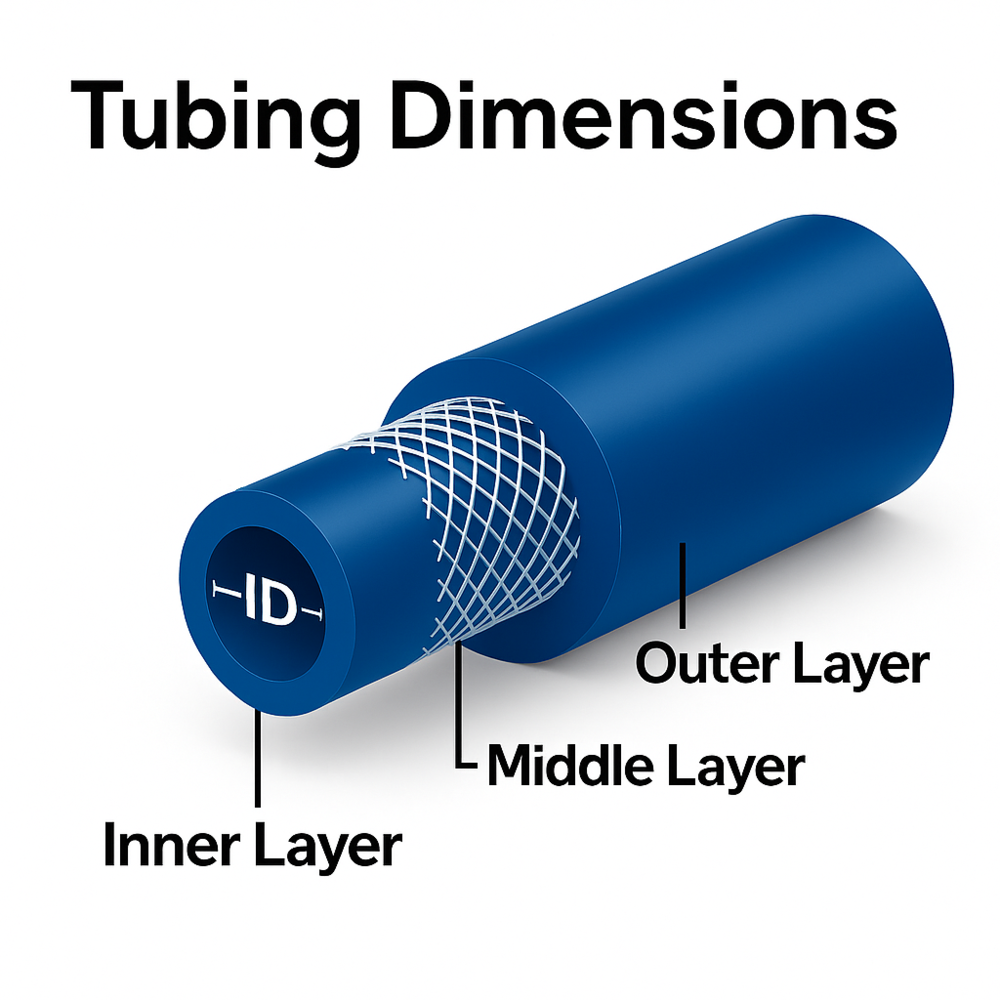

Hybrid Air Hose is a three-layer pneumatic hose with a fiber reinforcement layer between the inner and outer PVC layers. It supports higher working-pressure conditions and helps control diameter expansion under working pressure.

This structure helps maintain a stable hose profile under pressure variations, reducing diameter changes or localized deformation.

The PVC formulation is designed for low-temperature use, allowing the hose to remain flexible in cold environments. The reinforced structure helps provide the pressure resistance required for pneumatic systems.

In addition, the hose has low memory. Even after repeated pulling and coiling, it can remain straight when laid out, helping maintain stable hose routing on site.

Supplied without fittings, the hose can be cut, routed, and installed according to the actual system layout.

Available in inch and mm sizes
Working Pressure : Safety factor 3 to 1

Imperial Size (inch)

Model Number	Tube ID	Tube OD	Wall Thickness	Weight	Max. Working Pressure 73°F	Packing Length	Color
+Color	inch	inch	inch	lb/ft	psi	ft	BK	BU	R	Y
HB14433100FT_	1/4	0.433	0.09	0.054	300	100	■	■	■	■
HB14433500FT_	1/4	0.433	0.09	0.054	300	500	■	■	■	■
HB516531100FT_	5/16	0.531	0.11	0.081	300	100	■	■	■	■
HB516531500FT_	5/16	0.531	0.11	0.081	300	500	■	■	■	■
HB38590100FT_	3/8	0.590	0.11	0.092	300	100	■	■	■	■
HB38590500FT_	3/8	0.590	0.11	0.092	300	500	■	■	■	■
HB12728100FT_	1/2	0.728	0.11	0.128	300	100	■	■	■	■
HB12728300FT_	1/2	0.728	0.11	0.128	300	300	■	■	■	■

Metric Size (mm)

Model Number	Tube ID	Tube OD	Wall Thickness	Weight	Max. Working Pressure 23°C (73°F)	Packing Length	Color
+Color	mm	mm	mm	g/m	bar	m	BK	BU	R	Y
HB6511050M_	6.5	11.0	2.25	80	20	50	■	■	■	■
HB65110100M_	6.5	11.0	2.25	80	20	100	■	■	■	■
HB8013550M_	8.0	13.5	2.75	121	20	50	■	■	■	■
HB80135100M_	8.0	13.5	2.75	121	20	100	■	■	■	■
HB1016025M_	10.0	16.0	3.00	159	20	25	■	■	■	■
HB1016050M_	10.0	16.0	3.00	159	20	50	■	■	■	■
HB12518525M_	12.5	18.5	3.00	190	20	25	■	■	■	■
HB12518550M_	12.5	18.5	3.00	190	20	50	■	■	■	■

ㆍThree-layer braided construction helps control diameter changes under working pressure and maintain a stable hose profile
ㆍPVC formulation designed for low-temperature use, maintaining flexibility in cold environments
ㆍThe material formulation and reinforced structure serve complementary functions, supporting low-temperature operation and the pressure resistance required for pneumatic systems
ㆍLow-memory hose characteristics suitable for repeated pulling, coiling, and rerouting of air-supply lines
ㆍSupplied without fittings for industrial pneumatic applications requiring cutting and routing

ㆍEnd-branch pneumatic piping for factory and maintenance environments
ㆍExtended and reconfigurable air-supply connections for workstations and equipment
ㆍAir-supply piping for low-temperature or winter operating environments
ㆍCompressed-air supply piping for temporary routing, maintenance, or line modification
