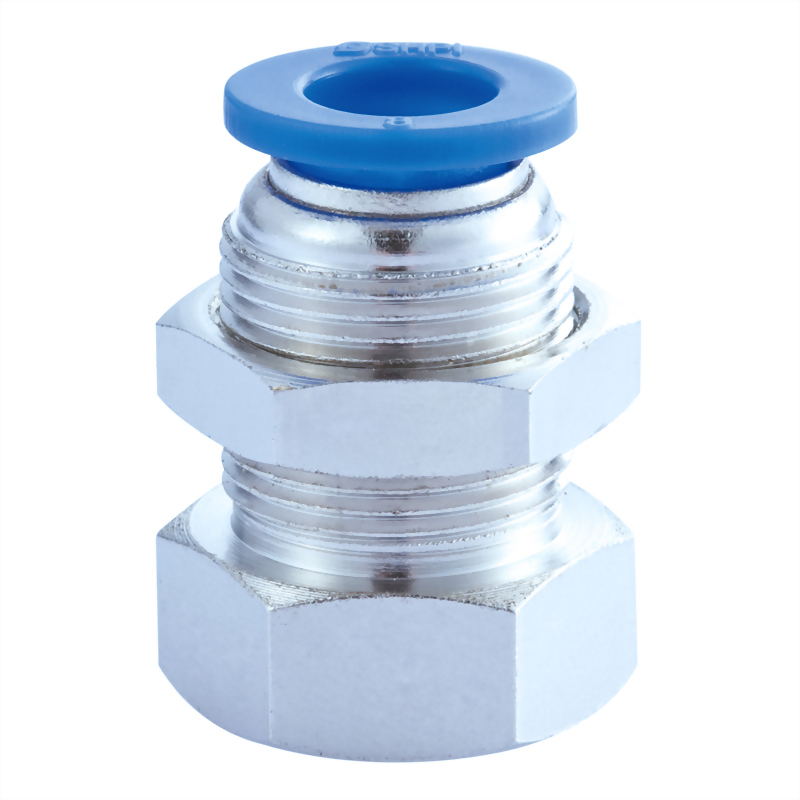

• One Touch Fitting PMF bulkhead female straight

One Touch Fitting PMF bulkhead female straight

Model : PMF-g

ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C

Model Number ØD
T1
(Thread)
T2
(Thread)
L
H1 (Hex)
(mm)
H2 (Hex)
(mm)
A Q'ty per bag Q'ty per box
PMF 04-G01 4 G 1/8 M12*P1.0 24 14 14 8.5 10 100
PMF 04-G02 4 G 1/4 M12*P1.0 26.5 17 14 11 10 100
PMF 06-G01 6 G 1/8 M14*P1.0 25 17 17 8.5 10 100
PMF 06-G02 6 G 1/4 M14*P1.0 27 17 17 11 10 100
PMF 06-G03 6 G 3/8 M14*P1.0 28 20 17 11 10 50
PMF 08-G01 8 G 1/8 M16*P1.0 27 19 19 8.5 10 50
PMF 08-G02 8 G 1/4 M16*P1.0 29 19 19 11 10 50
PMF 08-G03 8 G 3/8 M16*P1.0 29.5 20 19 11 10 50
PMF 08-G04 8 G 1/2 M16*P1.0 31.5 24 19 13 5 25
PMF 10-G01 10 G 1/8 M20*P1.0 30.5 24 24 8.5 10 50
PMF 10-G02 10 G 1/4 M20*P1.0 33 24 24 11 10 50
PMF 10-G03 10 G 3/8 M20*P1.0 34 24 24 12 10 50
PMF 10-G04 10 G 1/2 M20*P1.0 37 24 24 13 5 25
PMF 12-G02 12 G 1/4 M22*P1.0 34 27 27 11 5 25
PMF 12-G03 12 G 3/8 M22*P1.0 35 27 27 12 5 25
PMF 12-G04 12 G 1/2 M22*P1.0 37 27 27 14 5 25

ㆍOne-Touch push-to-connect configuration allows for an instant tubing connection
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍApplicable Fluid Type / Air (No other type of gas or liquid)
