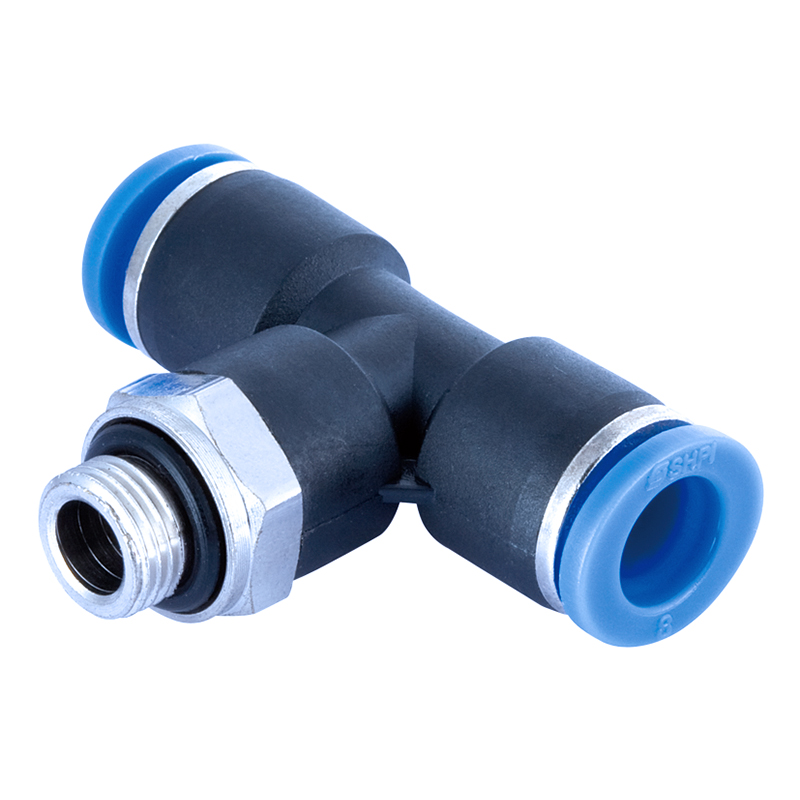

• One Touch Fitting PST male run tee

One Touch Fitting PST male run tee

Model : PST-g

ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C

Model Number ØD
T
(Thread)
L E A H (Hex) Q'ty per bag Q'ty per box
PST 04-G01 4 G 1/8 42 23.5 5.5 14 10 50
PST 04-G02 4 G 1/4 43 23.5 6.5 17 10 50
PST 04-G03 4 G 3/8 43 23.5 6.5 20 10 50
PST 06-G01 6 G 1/8 43 25 5.5 14 10 50
PST 06-G02 6 G 1/4 45 25 6.5 17 10 50
PST 06-G03 6 G 3/8 45 25.5 6.5 20 10 50
PST 08-G01 8 G 1/8 49.5 29 5.5 14 10 50
PST 08-G02 8 G 1/4 50.5 29 6.5 17 10 50
PST 08-G03 8 G 3/8 50.5 29 6.5 20 10 50
PST 08-G04 8 G 1/2 54 30 10 24 5 25
PST 10-G01 10 G 1/8 60.5 37 5.5 17 5 25
PST 10-G02 10 G 1/4 61.5 37 6.5 19 5 25
PST 10-G03 10 G 3/8 61.5 37 6.5 20 5 25
PST 10-G04 10 G 1/2 65 37 10 24 5 20
PST 12-G02 12 G 1/4 63 39.5 6.5 19 5 25
PST 12-G03 12 G 3/8 63 39.5 6.5 20 5 25
PST 12-G04 12 G 1/2 66.5 39.5 10 24 5 20
PST 14-G02 14 G 1/4 65.3 42 6.5 19 5 20
PST 14-G03 14 G 3/8 65.3 42 6.5 20 5 20
PST 14-G04 14 G 1/2 68.8 42 10 24 5 15



ㆍOne-Touch push-to-connect configuration allows for an instant tubing connection
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍApplicable Fluid Type / Air (No other type of gas or liquid)
