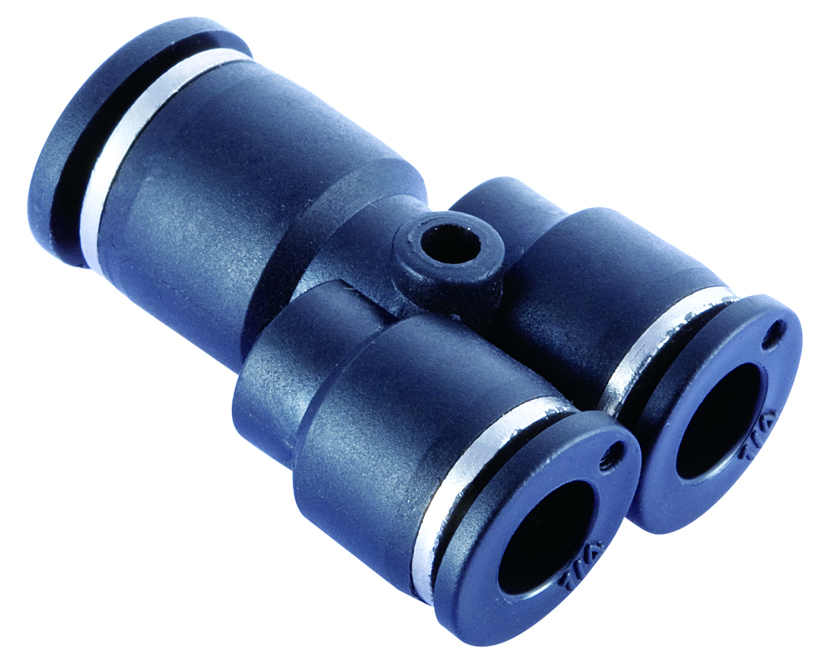

• One Touch Fitting PY union y

One Touch Fitting PY union y

Model : PY-inch

ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C

Model Number ØD L E C Q'ty per bag Q'ty per box
PY 5/32 5/32 35.5 22 3.2 10 100
PY 3/16 3/16 35.5 22 3.2 10 100
PY 1/4 1/4 37 26 3.2 10 50
PY 5/16 5/16 39.5 30 3.2 10 50
PY 3/8 3/8 50.5 37 4.2 5 25
PY 1/2 1/2 52.5 42 4.2 5 25

ㆍOne-Touch push-to-connect configuration allows for an instant tubing connection
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍApplicable Fluid Type / Air (No other type of gas or liquid)
