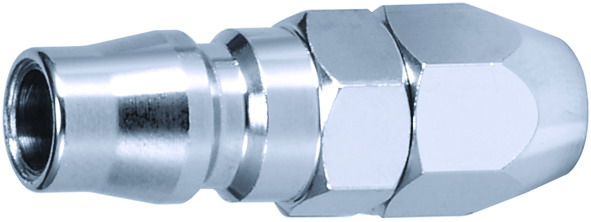

Quick Coupler NLC male series
Model :
NLC-M
ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
ØB
(mm)
|
| NLC400M | 1/2" | 64.8 | 29 | 16.8 | 1/2 PT | 13 |
| NLC600M | 3/4 | 68 | 29 | 19 | 3/4 PT | 15 |
| NLC800M | 1 | 75 | 35 | 25 | 1" PT | 16 |
ㆍFor massive flow
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
