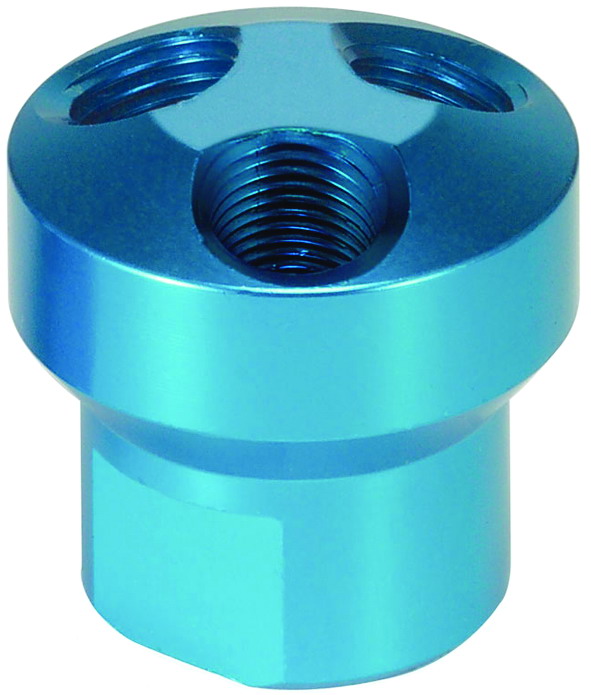

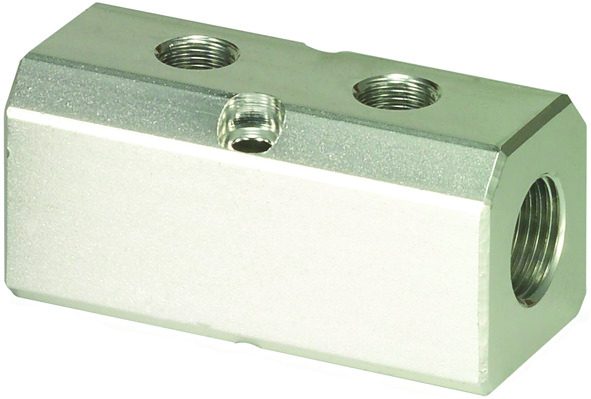

Multipass Quick Coupler TA series

Model : TA

ㆍMulti-pass coupler provides variety of connections.
ㆍEasy installation and storage.
ㆍAluminium base with anodized or sand-blast finish.
ㆍAvailable for regular flow and large flow.
ㆍLight weight and compact in size.

Model Number Material
L
(mm)
A
(mm)
B
(mm)
TA2 Aluminium 64 32 16.6
TA3 Aluminium 95 47.5 16.7
TA4 Aluminium 130 65 18.8
TA5 Aluminium 159 79.5 17.9

ㆍApplicable Fluid Type: Air (No other type of gas or liquid)
ㆍMax. working pressure: 300PSI
ㆍBody material: Aluminium
ㆍ Quick coupler and plug
