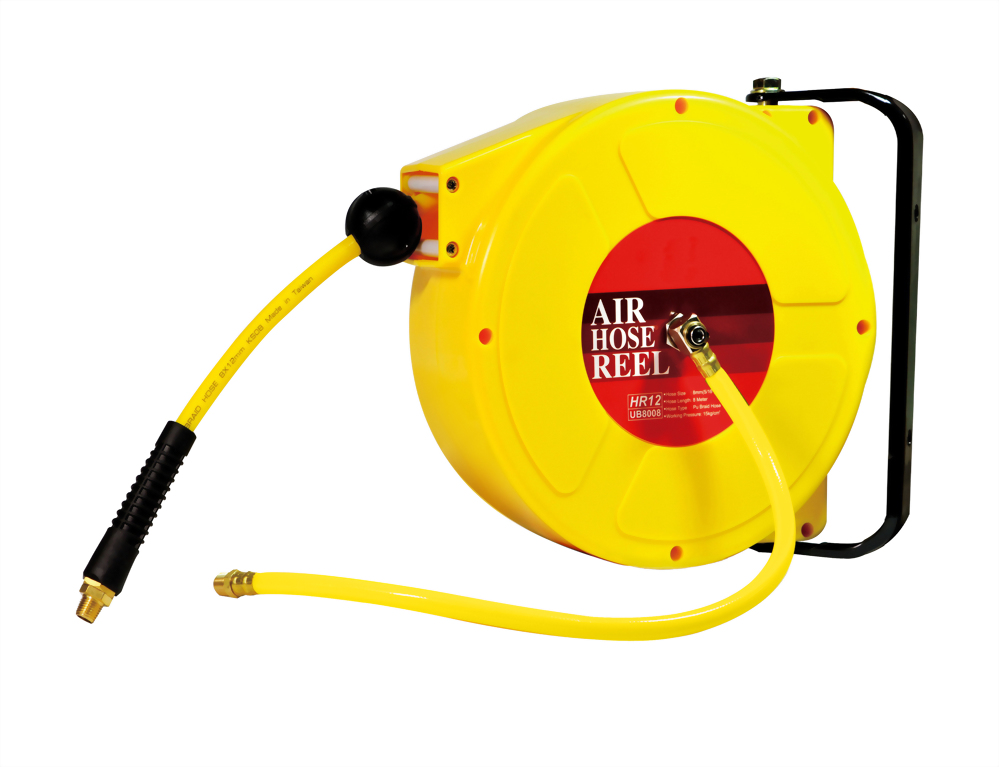

HR12 Series Air Hose Reel
HR12 Series | Lightweight 15 bar Spring-Driven Hose Reel
Professional 15 Bar Performance with Minimum Structural Load
The HR12 Series is a high-performance, spring-driven automatic hose reel engineered for mid-high pressure air supply in automotive shops, manufacturing plants, and industrial workstations. It bridges the gap between high-pressure requirements and the need for lightweight, flexible installation—making it the ideal solution for concrete walls or metal-stud partition systems.
Engineering Excellence for Industrial Environments
- 15 Bar Mid-High Pressure Rating: Specifically designed to power professional air tools and industrial equipment with reliable 15 bar working pressure.
- Ultra-Lightweight Design (2.7 kg / 6 lbs): One of the lightest in its class, significantly reducing the load on walls and support structures. Perfect for installations where space is restricted or structural capacity is limited.
- Precision Ratchet Lock Mechanism: The built-in ratchet lock allows users to secure the hose at any desired length. A simple pull activates the automatic rewind, preventing hose dragging and enhancing workplace safety.
- Reinforced PU Hose: High-durability construction that remains flexible and resilient across diverse and harsh climates.
- Extended 12-Meter Reach: Available in multiple configurations with hose lengths extending up to 12 meters, providing a wide operational radius for large work bays.
Technical Specifications
- Max Working Pressure: 15Bar
- Unit Weight: 2.7 kg
- Housing Material: High-strength, Corrosion-resistant ABS
- Mounting: Dedicated bracket for wall or structural frame installation
- Origin: 100% Made in Taiwan
Procurement FAQ
Q: What installation conditions is the HR12 best suited for?
A: Designed for 15bar mid-high pressure applications. Suitable for concrete and non-load-bearing wall installations, with proper mounting based on structural conditions.
Q: Do you offer OEM/ODM for industrial projects?
A: Absolutely. We provide full customization and private labeling services for the HR12 series to meet your specific brand and technical requirements.
| Model Number |
Hose I.D
(mm/ inch)
|
Max. Working Pressure
(23°C)
|
Min. Bursting Pressure
(23°C)
|
Hose Length
(inlet)
|
Hose Length
(outlet)
|
Hose Type |
Fitting Thread
(inlet+outlet)
|
Weight
(N.W)
|
| HR12-UB6508 | 6.5 mm(1/4") | 15 bar | 60 bar | 50 cm | 8 M | PU Braid | 1/4"+1/4" | 3.3 kg |
| HR12-UB6510 | 6.5 mm(1/4") | 15 bar | 60 bar | 50 cm | 10 M | PU Braid | 1/4"+1/4" | 3.3 kg |
| HR12-UB6512 | 6.5 mm(1/4") | 15 bar | 60 bar | 50 cm | 12 M | PU Braid | 1/4"+1/4" | 3.3 kg |
| HR12-UB8008 | 8.0 mm(5/16") | 15 bar | 60 bar | 50 cm | 8 M | PU Braid | 1/4"+1/4" | 3.3 kg |
ㆍCasing made of strong ABS plastic
ㆍAutomatic hose reel, Ratchet or free-running operation
ㆍLightweight and corrosion resistant design
ㆍSupplied with bracket and hanging hook
ㆍWorking temperature -5°C~+60°C
ㆍSingle packaging: 345mm x 300mm x 145mm
ㆍMeasurement:6 sets in a master carton, 610x355x450mm(LxWxH)
ㆍWorks with suitable pneumatic tools
ㆍUsed for automotive maintenance,home DIY and/or manufacturing facilities
