Brass Fitting STM series

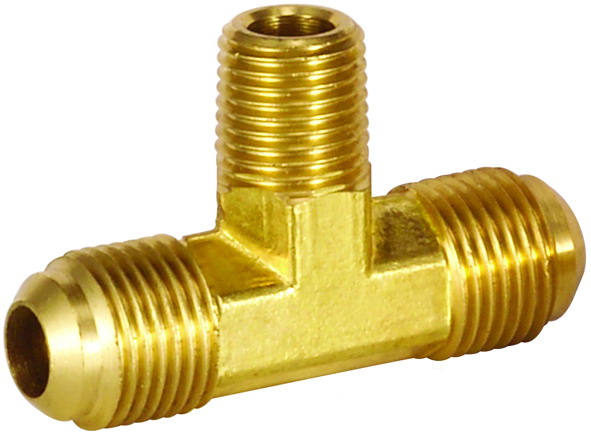

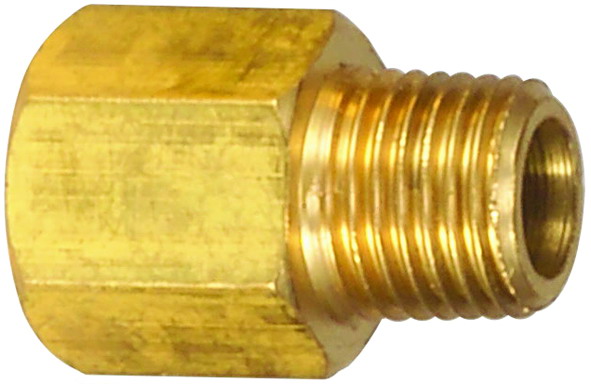

Model : STM

ㆍTube fittings, flare tube fittings, compression fittings and normal fittings.
ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
    NPT thread is also available upon request.
Model A B
C-082S 1/4  1/8
C-083S 5/16 1/4
C-083-1S 1/4 1/4
C-084S  3/8  3/8
C-084-1S  3/8  1/4
C-084-2S  1/2  1/4
C-084-3S  1/4  3/8
C-084-4S 5/16  3/8
C-085-1S  1/2  3/8
C-085-2S  1/4  1/2
C-085-3S 5/16  1/2
C-085-4S  3/8  1/2
C-085-5S  1/2  1/2
ㆍApplicable Fluid Type / AIR(No other type of gas or liquid)
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍBrass fittings for connection of PU and NYLON tubing
