HR04 Steel-Housing Retractable Air Hose Reel
※ Click the product image to view more specs and technical details.
・Steel-housed spring-driven hose reel
・Automotive service bays, industrial workstations, and high-use fixed work areas
・PU braided hose, maximum working pressure 15 bar
・Ratchet positioning and automatic rewind design for fixed working length
・Wall or ceiling mounting
・Steel-housed spring-driven hose reel
・Automotive service bays, industrial workstations, and high-use fixed work areas
・PU braided hose, maximum working pressure 15 bar
・Ratchet positioning and automatic rewind design for fixed working length
・Wall or ceiling mounting
Model :
HR04
HR04 is a steel-housed spring-driven hose reel for automotive service bays, industrial workstations, and high-use fixed compressed-air work areas.
Available with PU braided hose, the maximum working pressure rating is 15 bar.
A ratchet positioning and spring-driven automatic rewind mechanism allows the hose to remain fixed at the required working length. After use, a light pull releases the ratchet position and rewinds the hose, helping reduce sudden hose retraction, hose dragging, loose hose, and workspace clutter.
The steel housing structure supports wall or ceiling mounting in fixed workstations and high-use industrial compressed-air line management.
Available with PU braided hose, the maximum working pressure rating is 15 bar.
A ratchet positioning and spring-driven automatic rewind mechanism allows the hose to remain fixed at the required working length. After use, a light pull releases the ratchet position and rewinds the hose, helping reduce sudden hose retraction, hose dragging, loose hose, and workspace clutter.
The steel housing structure supports wall or ceiling mounting in fixed workstations and high-use industrial compressed-air line management.
| Model Number |
Hose I.D
(mm/ inch)
|
Max. Working Pressure
(23°C)
|
Min. Bursting Pressure
(23°C)
|
Hose Length
(inlet)
|
Hose Length
(outlet)
|
Hose Type |
Fitting Thread
(inlet+outlet)
|
Weight
(N.W)
|
| HR04-UB6510 | 6.5 mm(1/4") | 15 bar | 60 bar | 50 cm | 10 M | PU Braid | 1/4"+1/4" | 8 kg |
| HR04-UB6515 | 6.5 mm(1/4") | 15 bar | 60 bar | 50 cm | 15 M | PU Braid | 1/4"+1/4" | 8 kg |
| HR04-UB8010 | 8.0 mm(5/16") | 15 bar | 60 bar | 50 cm | 10 M | PU Braid | 1/4"+1/4" | 9 kg |
| HR04-UB8012 | 8.0 mm(5/16") | 15 bar | 60 bar | 50 cm | 12 M | PU Braid | 1/4"+1/4" | 9 kg |
| HR04-UB9510 | 9.5mm (3/8") | 15 bar | 60 bar | 50 cm | 10M | PU Braid | 3/8"+3/8" | 9.5 kg |
| HR04-UB1008 | 10 mm | 15 bar | 60 bar | 50 cm | 8 M | PU Braid | 3/8"+3/8" | 9.2 kg |
・Steel housing structure
・PU braided hose, maximum working pressure 15 bar
・Spring-driven automatic rewind mechanism for hose retraction after use
・Ratchet positioning design for fixed working length
・Hose stopper for adjusting the remaining hose length after rewind
・Wall or ceiling mounting
・PU braided hose, maximum working pressure 15 bar
・Spring-driven automatic rewind mechanism for hose retraction after use
・Ratchet positioning design for fixed working length
・Hose stopper for adjusting the remaining hose length after rewind
・Wall or ceiling mounting
・Automotive service bays and vehicle maintenance workstations
・Industrial workstations and manufacturing areas
・Fixed air supply for pneumatic tools
・High-use fixed compressed-air work areas
・Industrial workstations and manufacturing areas
・Fixed air supply for pneumatic tools
・High-use fixed compressed-air work areas
Related Products
Reinforced Polyurethane Air Hose
Reinforced Polyurethane Air Hose Assemblies
Hybrid Air Hose
Hybrid Air Hose Assemblies
Coiled Polyurethane Air Hose Assembly -Metric System

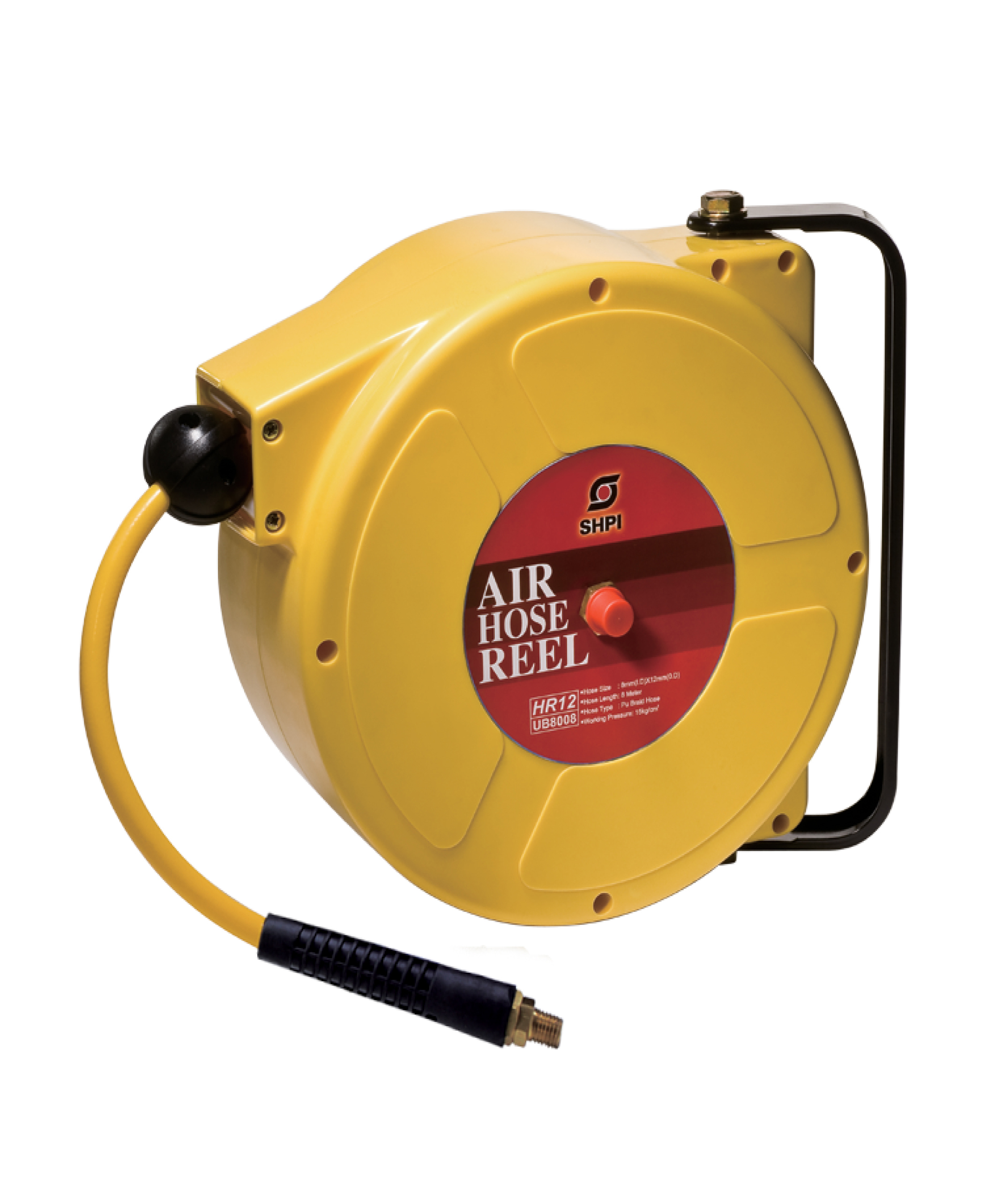

HR12 ABS-Housing Retractable Air Hose Reel
HR02 Long-Distance Manual Air Hose Reel
HR02DXS Compact Manual Air Hose Reel
HR07 Ultra-Compact Portable Manual Air Hose Reel

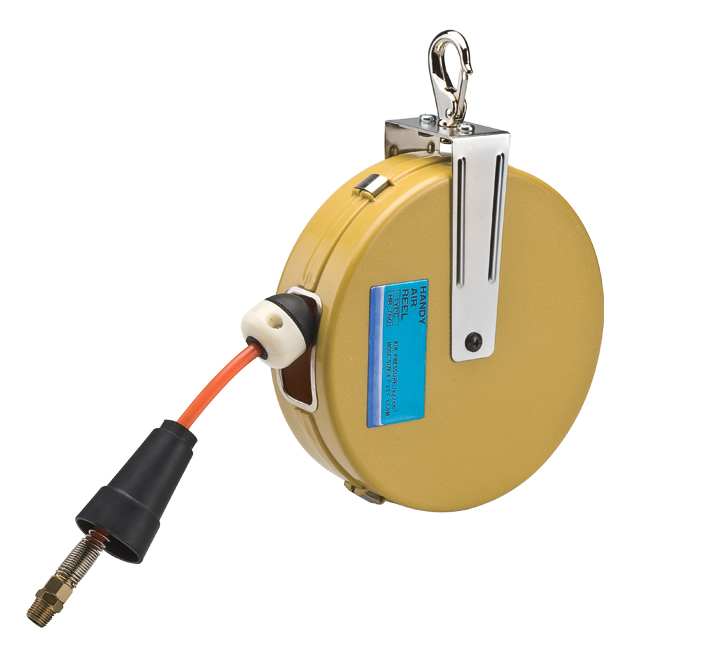

HR01 Lightweight Retractable Air Hose Reel

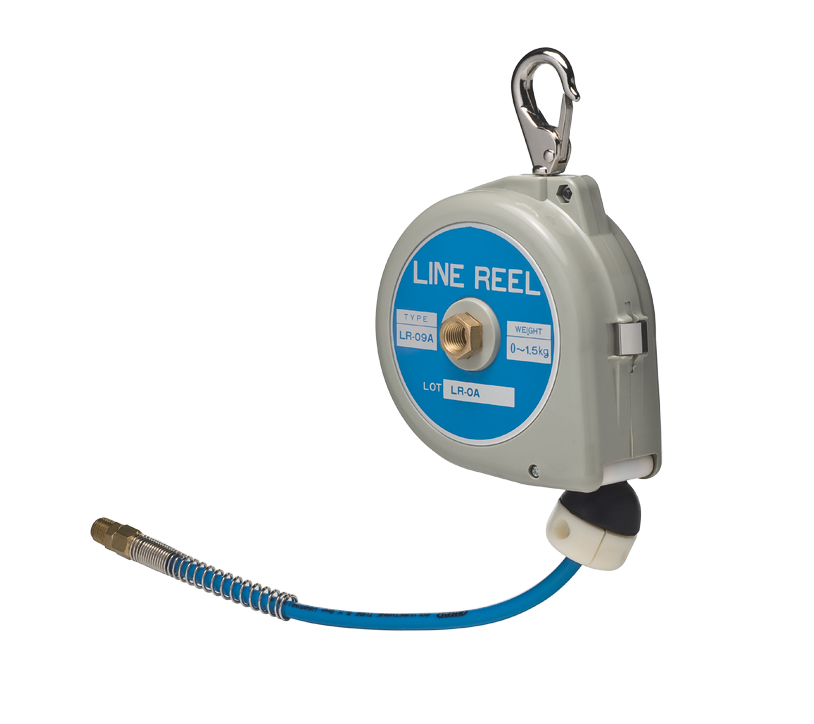

HR09 Continuous-Tension Retractable Air Hose Reel
