Brass Fitting TM series
Model :
TM

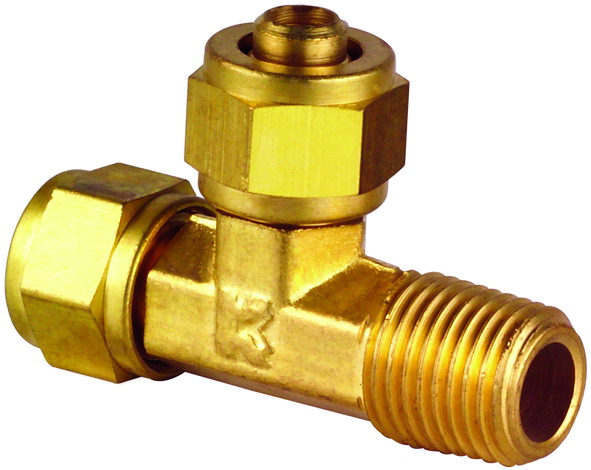

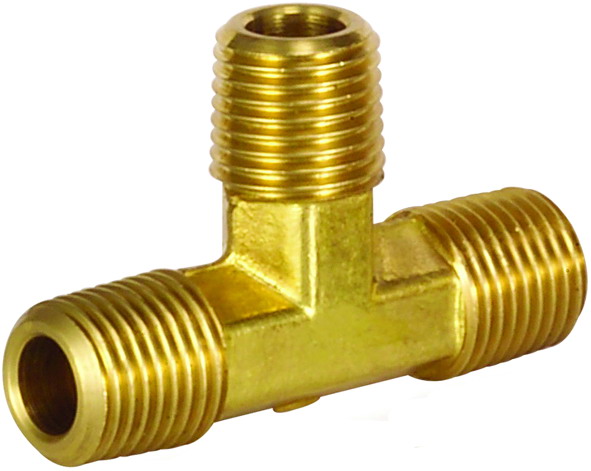

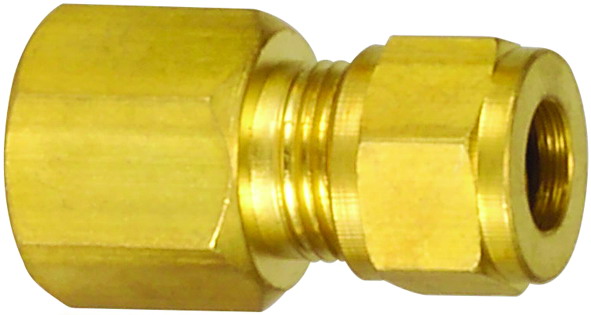

ㆍTube fittings, flare tube fittings, compression fittings and normal fittings.
ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
NPT thread is also available upon request.
| Model | A | B |
| C-082 | 1/4 | 1/8 |
| C-083 | 5/16 | 1/4 |
| C-083-1 | 1/4 | 1/4 |
| C-084 | 3/8 | 3/8 |
| C-084-1 | 3/8 | 1/4 |
| C-084-2 | 1/2 | 1/4 |
| C-084-3 | 1/4 | 3/8 |
| C-084-4 | 5/16 | 3/8 |
| C-085-1 | 1/2 | 3/8 |
| C-085-2 | 1/4 | 1/2 |
| C-085-3 | 5/16 | 1/2 |
| C-085-4 | 3/8 | 1/2 |
| C-085-5 | 1/2 | 1/2 |
ㆍApplicable Fluid Type / AIR(No other type of gas or liquid)
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍBrass fittings for connection of PU and NYLON tubing
