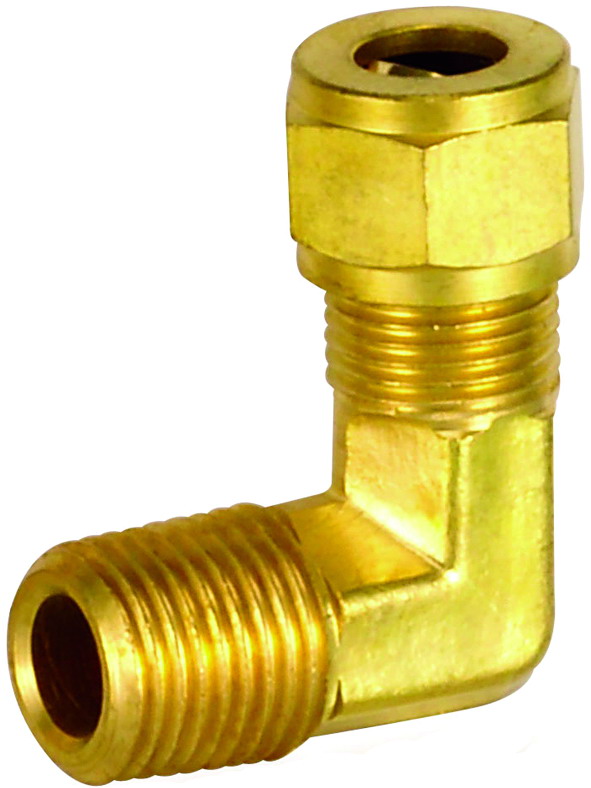

• Brass Fitting TB series

Brass Fitting TB series

Model : TB

ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
    NPT thread is also available upon request.
Model A B
A-037 1/4  1/8
A-038 1/4 1/4
A-039 5/16 1/4
A-040  3/8 1/4
A-041  3/8  3/8
A-041-1  1/4  3/8
A-041-2 5/16  3/8
A-042  1/2  1/2
A-042-1  1/2  3/8
A-042-2  3/8  1/2
ㆍApplicable Fluid Type / AIR(No other type of gas or liquid)
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍBrass fittings for connection of PU and NYLON tubing
