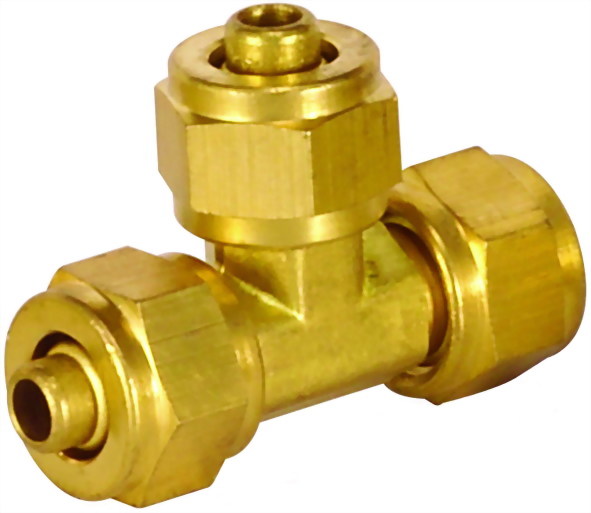

Brass Fitting UTB series
Model :
UTB

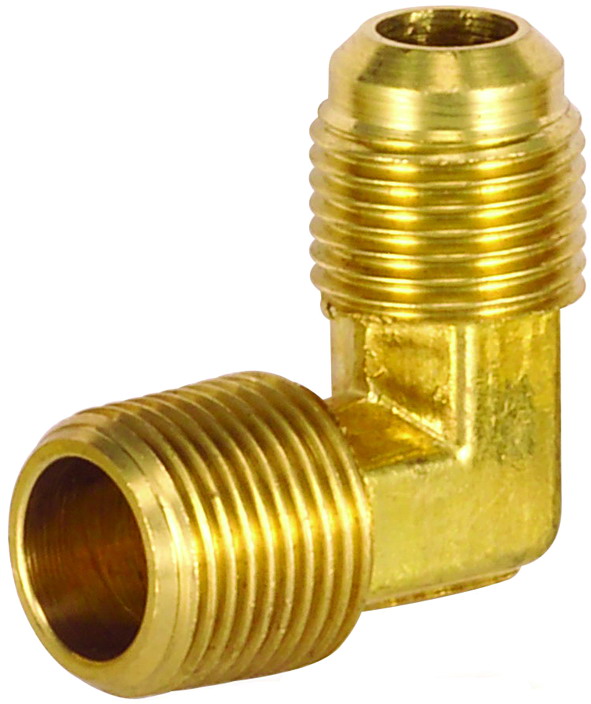

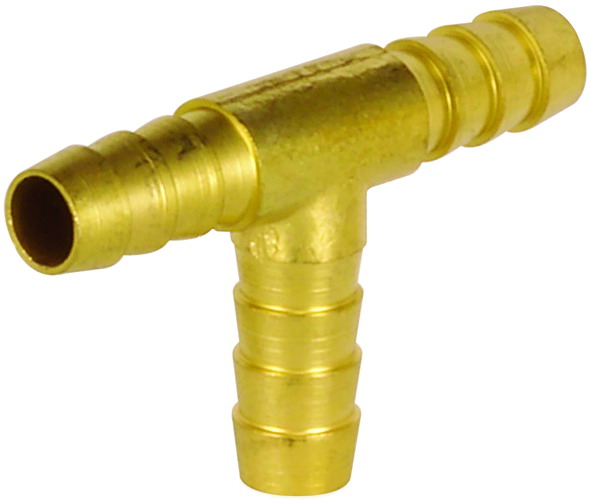

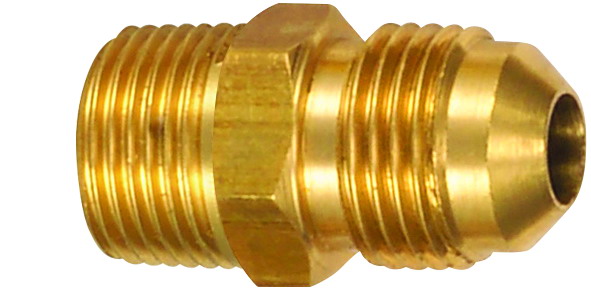

ㆍTube fittings, flare tube fittings, compression fittings and normal fittings.
ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
NPT thread is also available upon request.
ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
NPT thread is also available upon request.
| Model | Dimensions |
| PA-009 | 1/4 |
| PA-010 | 5/16 |
| PA-011 | 3/8 |
| PA-012 | 1/2 |
ㆍApplicable Fluid Type / AIR(No other type of gas or liquid)
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍBrass fittings for connection of PU and NYLON tubing
