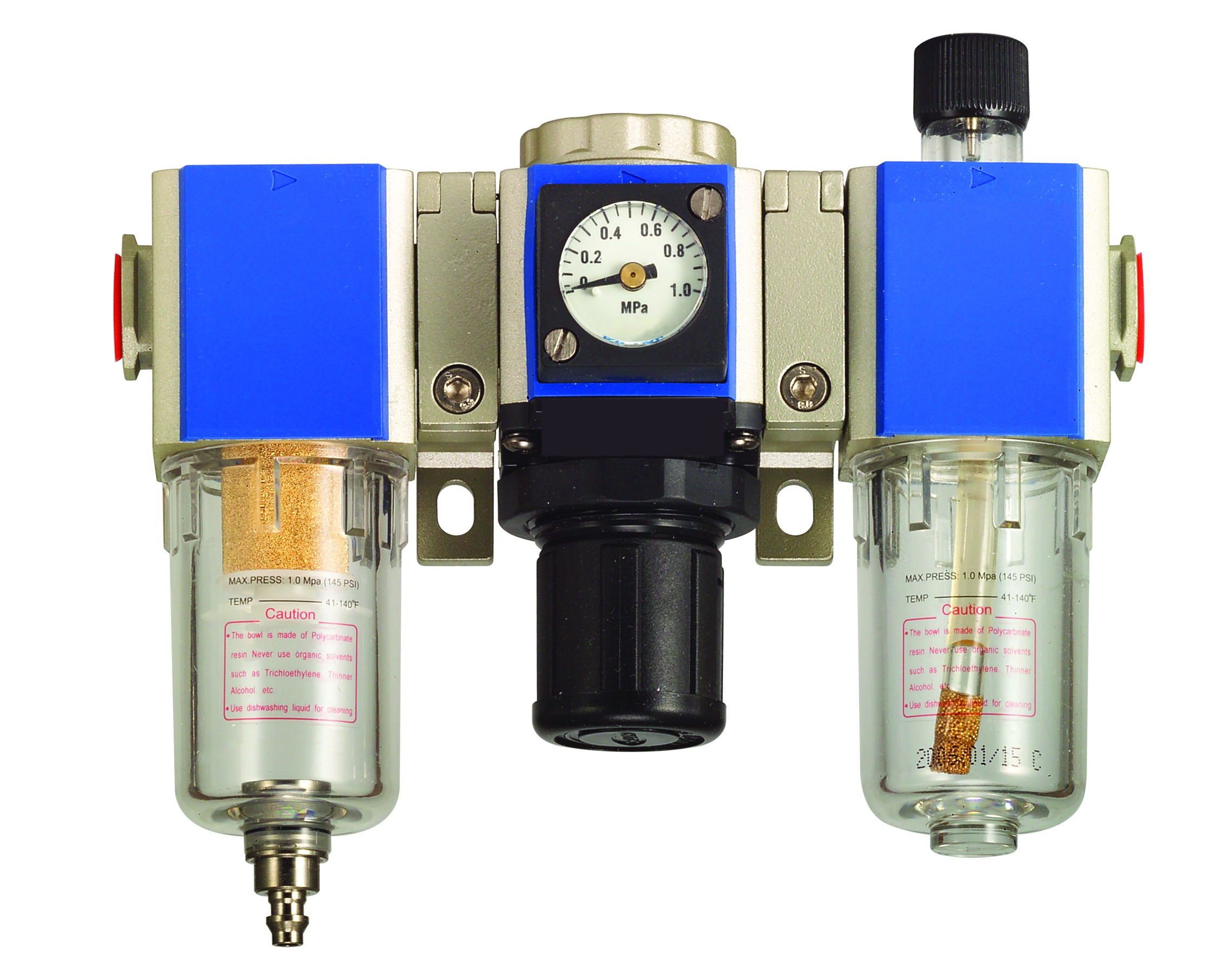

F.R.L GFCS 200 Series Combination
Model :
GFCS-200
ㆍQuick and reliable fixation makes it convenient to install and use.
ㆍThe performance of pressure adjustment is reliable with high precision.
ㆍThe efficiency of eliminating moisture and solid grain is high.
ㆍThree drain types are available: manual drain, semi-auto drain and automatic drain.
| Model Number | Fluid | Port Size | Filtering Grade | Pressure Range | Max Pressure | Proof Pressure | Temperature | Drain Bowl Capacity | Oil Bowl Capacity | Weight |
| GCFS 200-06 | Air | 1/8" | 40µ, 5µ | 1.5 - 9 Bar | 10 Bar | 15 Bar | 5 - 60°C | 10cc | 25cc | 425g |
| GFCS 200-08 | Air | 1/4" | 40µ, 5µ | 1.5 - 9 Bar | 10 Bar | 15 Bar | 5 - 60°C | 10cc | 25cc | 425g |
| Item / Model | GFCS 200 |
| Body | Aluminum Alloy |
| Umbrella Baffle | POM |
| Air Guider | POM |
| Filter Element | 40µ: Tin Copper ; 5µ: Fiber |
| Drain Bowl | PC |
| Leak Post | POM |
| Pressure Knob | POM |
| Adjusting Seat | POM |
| Adjusting Spindle | HPB59-1 |
| Diaphragm | SUS304 covered with rubber |
| Pressure Spring | Stainless Steel |
| Spring | Stainless Steel |
| Filling Plug | Brass |
| Bowl | PC |
| Ejector Pin | Brass |
| Bowl Guard | PC |
ㆍUse pneumatic tools and equipment.
ㆍRequire clean air to be delivered to your facility or workplace.
