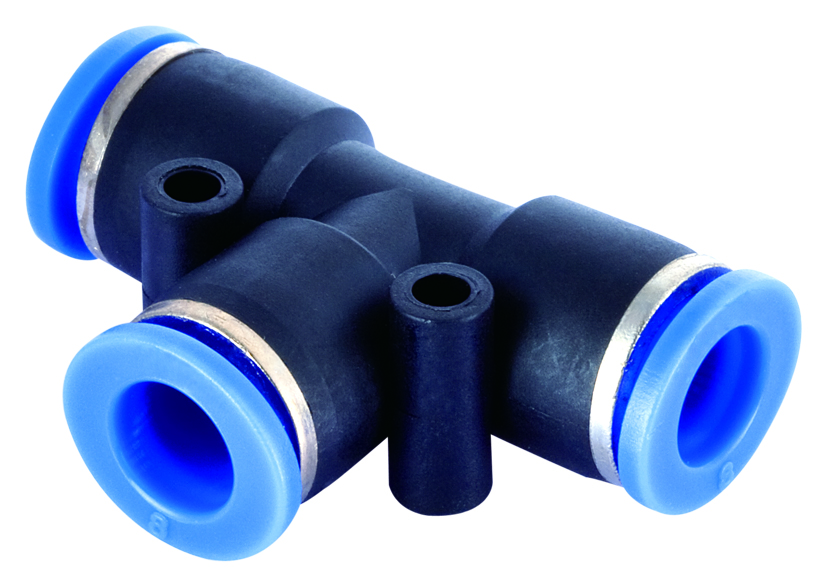

One Touch Fitting PGT reducer tee
Model :
PGT-mm
ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C
| Model Number | ØD | ØD2 | L | E | C | M1 | M2 | Q'ty per bag | Q'ty per box |
| PGT 0406 | 4 | 6 | 24.5 | 37.5 | 3.2 | 6.9 | 13.8 | 10 | 50 |
| PGT 0408 | 4 | 8 | 28 | 41 | 3.2 | 8.3 | 16.6 | 10 | 50 |
| PGT 0604 | 6 | 4 | 25.5 | 38 | 3.2 | 8 | 13.8 | 10 | 50 |
| PGT 0608 | 6 | 8 | 28 | 41 | 3.2 | 8.3 | 16.6 | 10 | 50 |
| PGT 0610 | 6 | 10 | 34 | 44.5 | 4.2 | 8.4 | 22 | 10 | 50 |
| PGT 0804 | 8 | 4 | 329.5 | 43.5 | 3.2 | 9 | 16.6 | 10 | 50 |
| PGT 0806 | 8 | 6 | 29.5 | 43.5 | 3.2 | 9 | 16.6 | 10 | 50 |
| PGT 0810 | 8 | 10 | 34.5 | 48 | 4.2 | 9.2 | 22 | 5 | 25 |
| PGT 0812 | 8 | 12 | 35.2 | 48.5 | 4.2 | 9.2 | 24.6 | 5 | 25 |
| PGT 1006 | 10 | 6 | 31.5 | 53 | 4.2 | 11 | 16.8 | 5 | 25 |
| PGT 1008 | 10 | 8 | 32 | 56 | 4.2 | 11 | 18.4 | 5 | 25 |
| PGT 1012 | 10 | 12 | 38.2 | 58 | 4.2 | 11 | 24.6 | 5 | 25 |
| PGT 1208 | 12 | 8 | 35 | 56 | 4.2 | 12.3 | 18.4 | 5 | 25 |
| PGT 1210 | 12 | 10 | 39 | 57.5 | 4.2 | 12.3 | 18.4 | 5 | 25 |
| PGT 1412 | 14 | 12 | 41 | 60.5 | 4.2 | 14.5 | 26.5 | 5 | 20 |
| PGT 1612 | 16 | 12 | 44.5 | 65 | 4.2 | 14.6 | 24.6 | 3 | 15 |
| PGT 1614 | 16 | 14 | 46 | 65 | 4.2 | 14 | 28 | 3 | 15 |
ㆍOne-Touch push-to-connect configuration allows for an instant tubing connection
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍImmediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting
ㆍFittings are already equipped with Teflon-treatment or o-ring on the thread
ㆍNickel-plated brass body ensures anti-contamination properties for an extended product life
ㆍApplicable Fluid Type / Air (No other type of gas or liquid)
