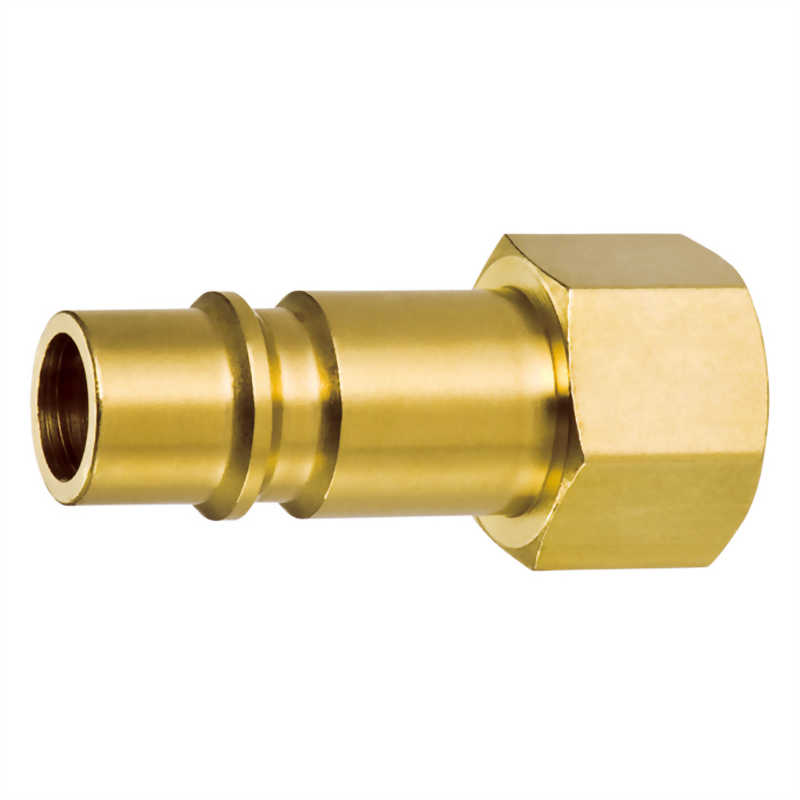

Quick Plug 40MP female series
Model :
40MP-F
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
A
(mm)
|
T
(Thread)
|
| 40MP20F | 1/4" | 51 | 13 | 1/4 NPT |
| 40MP30F | 3/8" | 53 | 14.5 | 3/8 NPT |
ㆍPlugs are matched to MC. MIC. MOC 1/2" body system quick coupler.
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
