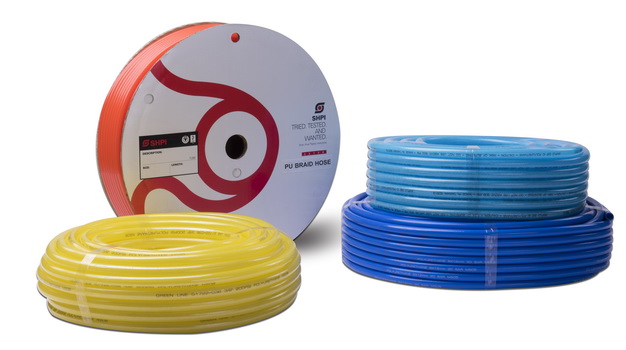

Reinforced Polyurethane Air Hose Assemblies
※ Click the product image to view more specs and technical details.
ㆍAssembled three-layer polyurethane braided pneumatic hose
ㆍFiber-reinforced structure for pneumatic piping applications requiring higher working pressure
ㆍStable hose geometry under pressure variation
ㆍIndustrial compressed-air piping and air-supply use
ㆍAssembled three-layer polyurethane braided pneumatic hose
ㆍFiber-reinforced structure for pneumatic piping applications requiring higher working pressure
ㆍStable hose geometry under pressure variation
ㆍIndustrial compressed-air piping and air-supply use
Model :
UBSA
A factory-assembled pneumatic hose with pre-installed fittings, constructed with inner and outer PVC layers and an intermediate braided fiber reinforcement layer, forming a three-layer structure designed to support the working-pressure requirements of pneumatic systems.
This braided structure helps control diameter expansion under working pressure and maintains a stable hose profile during operation.
The material formulation is designed for low-temperature use, allowing the hose to remain flexible in cold environments.
Through coordinated material and structural design, the hose supports the pressure requirements of pneumatic systems while maintaining stability in tool-end air supply applications and mobile working environments.
As a ready-to-use hose assembly, the product reduces on-site fitting work and is intended for tool-end air supply or temporary workstation applications involving repeated pulling, coiling, and movement.
For compatible fittings and connectors, please refer to:
→ Coupler & Plug
This braided structure helps control diameter expansion under working pressure and maintains a stable hose profile during operation.
The material formulation is designed for low-temperature use, allowing the hose to remain flexible in cold environments.
Through coordinated material and structural design, the hose supports the pressure requirements of pneumatic systems while maintaining stability in tool-end air supply applications and mobile working environments.
As a ready-to-use hose assembly, the product reduces on-site fitting work and is intended for tool-end air supply or temporary workstation applications involving repeated pulling, coiling, and movement.
For compatible fittings and connectors, please refer to:
→ Coupler & Plug
- Available in inch and mm sizes
- Working Pressure : Safety factor 3 to 1
Imperial Size (in)
|
Part Number
|
Tube ID | Max. Working Pressure 73°F | Packing Length | Fittings | Color | |||
|---|---|---|---|---|---|---|---|---|
| +Color | inch | psi | ft | T | TBU | TY | R | |
| UBSA1425FT_ | 1/4 | 300 | 25 | 1/4 NPT | □ | □ | □ | ■ |
| UBSA1450FT_ | 50 | |||||||
| UBSA14100FT_ | 100 | |||||||
| UBSA51625FT_ | 5/16 | 300 | 25 | 1/4 NPT, 3/8 NPT | □ | □ | □ | ■ |
| UBSA51650FT_ | 50 | |||||||
| UBSA516100FT_ | 100 | |||||||
| UBSA3825FT_ | 3/8 | 300 | 25 | 1/4 NPT, 3/8 NPT | □ | □ | □ | ■ |
| UBSA3850FT_ | 50 | |||||||
| UBSA38100FT_ | 100 | |||||||
| UBSA1225FT_ | 1/2 | 300 | 25 | 3/8 NPT, 1/2 NPT | □ | □ | □ | ■ |
| UBSA1250FT_ | 50 | |||||||
| UBSA12100FT_ | 100 | |||||||
Metric Size (mm)
|
Part Number
|
Tube ID | Max. Working Pressure 23°C (73°F) | Packing Length | Fittings | Color | ||
|---|---|---|---|---|---|---|---|
| +Color | mm | bar | m | BU | R | OR | |
| UBSA6510M_ | 6.5 | 20 | 10 | 1/4 PT | ■ | ■ | ■ |
| UBSA6512M_ | 12 | ||||||
| UBSA6515M_ | 15 | ||||||
| UBSA6520M_ | 20 | ||||||
| UBSA6525M_ | 25 | ||||||
| UBSA8010M_ | 8.0 | 20 | 10 | 1/4 PT, 3/8 PT | ■ | ■ | ■ |
| UBSA8012M_ | 12 | ||||||
| UBSA8015M_ | 15 | ||||||
| UBSA8020M_ | 20 | ||||||
| UBSA8025M_ | 25 | ||||||
| UBSA8510M_ | 8.5 | 20 | 10 | 1/4 PT, 3/8 PT | ■ | ■ | ■ |
| UBSA8512M_ | 12 | ||||||
| UBSA8515M_ | 15 | ||||||
| UBSA8520M_ | 20 | ||||||
| UBSA8525M_ | 25 | ||||||
| UBSA1010M_ | 10.0 | 20 | 10 | 3/8 PT | ■ | ■ | ■ |
| UBSA1012M_ | 12 | ||||||
| UBSA1015M_ | 15 | ||||||
| UBSA1020M_ | 20 | ||||||
| UBSA1110M_ | 11.0 | 20 | 10 | 3/8 PT, 1/2 PT | ■ | ■ | ■ |
| UBSA1112M_ | 12 | ||||||
| UBSA1115M_ | 15 | ||||||
| UBSA1120M_ | 20 | ||||||
・Assembled polyurethane braided pneumatic hose
・Three-layer structure supporting pneumatic systems requiring higher working pressure
・Stable hose geometry under pressure variation; reduced localized deformation
・Ether-based PU structure with stable elastic behavior under humidity and changing operating environments
・Three-layer structure supporting pneumatic systems requiring higher working pressure
・Stable hose geometry under pressure variation; reduced localized deformation
・Ether-based PU structure with stable elastic behavior under humidity and changing operating environments
・Pneumatic connections for industrial machinery and equipment
・Air-supply connections for automation equipment and production lines
・Pneumatic systems requiring higher working-pressure performance
・Predefined-length pneumatic piping with finished hose assemblies
・Air-supply connections for automation equipment and production lines
・Pneumatic systems requiring higher working-pressure performance
・Predefined-length pneumatic piping with finished hose assemblies
