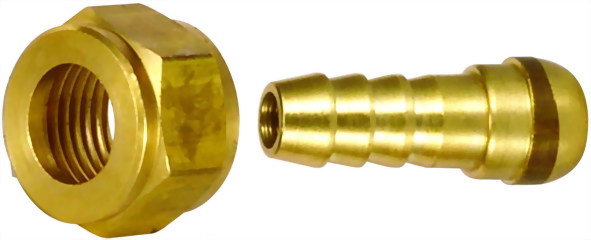

Brass Fitting Female Insert SHF series
Model :
SHF
ㆍTube fittings, flare tube fittings, compression fittings and normal fittings.
ㆍFitting size available from 1/8 - 3/4.
ㆍStandard fitting thread is available for BSPT.
NPT thread is also available upon request.
| Model | A | B |
| P-1 | 6m/m | 1/4 |
| P-1-2 | 5/16 | 1/4 |
| P-1-1 | 1/4 | 1/4 |
ㆍApplicable Fluid Type / AIR(No other type of gas or liquid)
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍWorking Pressure Range / 0 – 150 PSI / 0 - 9.9kgf / cm2
ㆍWorking temperature Range / 0 -60°C
ㆍBrass fittings for connection of PU and NYLON tubing
