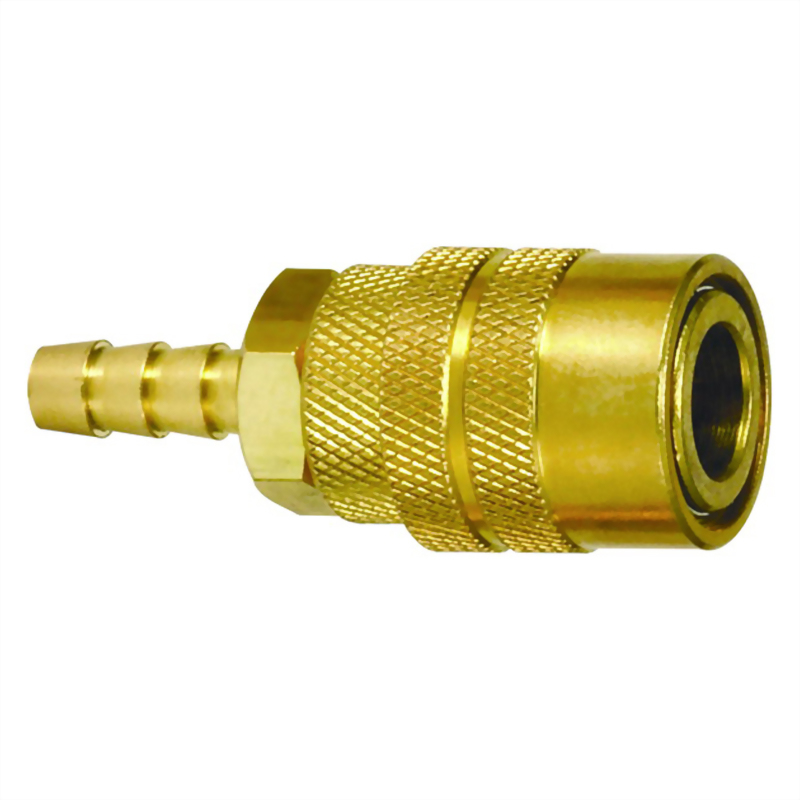

Quick Coupler MC hose barb series

Model : MC-H

ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.

Model Number Application
ØT
(mm)
ØB
(mm)
MC20H 1/4" 7 4
MC25H 5/16" 9 5.7
MC30H 3/8" 10.5 7
MC40H 1/2" 13.5 9.5

ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
