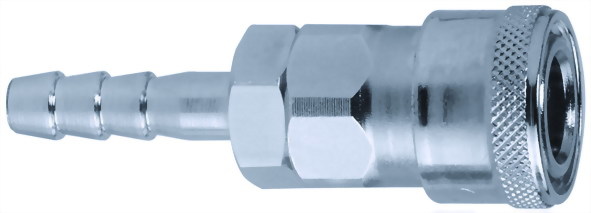

Quick Coupler NC hose barb series
Model :
NC-H
ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
| Model Number | Application |
L
(mm)
|
A
(mm)
|
ØT
(mm)
|
ØB
(mm)
|
| NC20H | 1/4" | 68 | 26 | 7.2 | 4.5 |
| NC25H | 5/16" | 72 | 30 | 9 | 5 |
| NC30H | 3/8" | 73.5 | 31.5 | 11.3 | 7.5 |
| NC40H | 1/2" | 75 | 33 | 14.5 | 9 |
ㆍTwo touch type/ Traditional type
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
