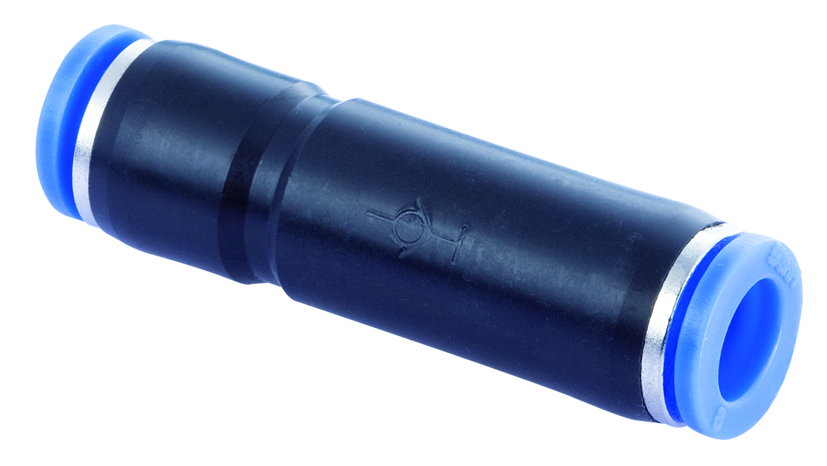

Check Valve - CVPF
Model :
CVPF
ㆍWorking Pressure Range / 0~150PSI /0~9.9Kgf/cm2(0~990KPa)
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C
ㆍNegative Pressure /-29.5in Hg/-750mmHg(-750Torr)
ㆍWorking Temperature Range / 32°F~140°F / 0~60°C
| Model Number | T1 | T2 | L | A1 | A2 | H | Q'ty per bag | Q'ty per box |
| CVPF 01-01 | PT 1/8 | PT 1/8 | 28 | 8 | 8 | 12 | 10 | 100 |
| CVPF 02-02 | PT 1/4 | PT 1/4 | 33.4 | 10 | 10 | 17 | 10 | 50 |
| CVPF 03-03 | PT 3/8 | PT 3/8 | 40 | 11 | 11 | 20 | 5 | 25 |
| CVPF 04-04 | PT 1/2 | PT 1/2 | 44 | 14 | 14 | 24 | 5 | 25 |
ㆍSuitable for low pressure applications
ㆍThis valve allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
ㆍEasily applied to low pressure piping
ㆍThis valve allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
ㆍEasily applied to low pressure piping
ㆍSuitable for low pressure applications
ㆍThis valve allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
ㆍEasily applied to low pressure piping
ㆍThis valve allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
ㆍEasily applied to low pressure piping
