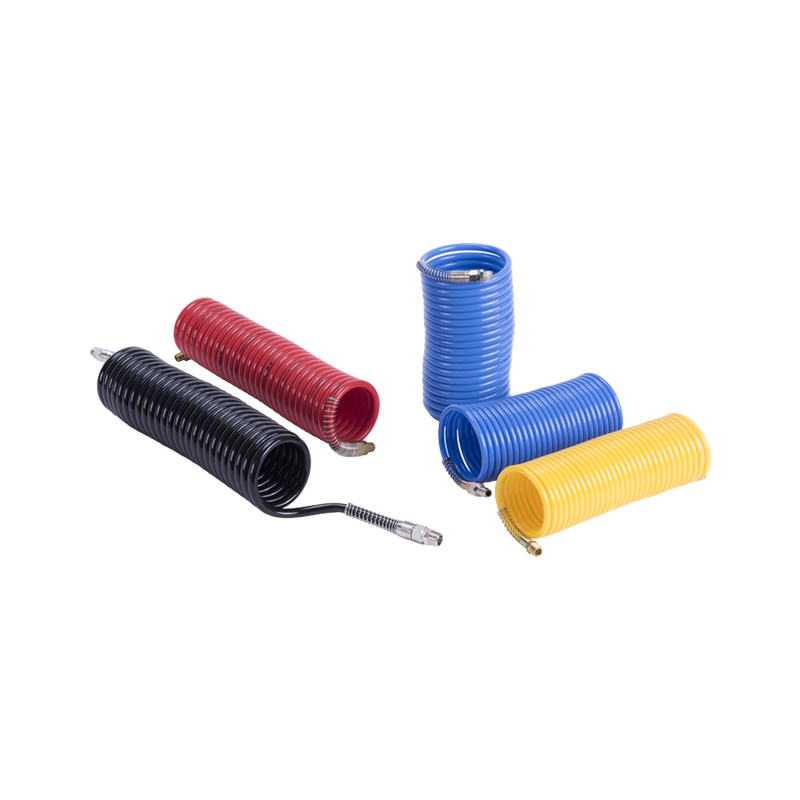

Coiled Nylon Air Hose Assemblies PA 12
※ Click the product image to view more specs and technical details.
• Nylon 12 material coiled tubing structure
• Coiled design for pneumatic line connections in general air systems
• Tubing returns to its original form after extension
• Nylon 12 material coiled tubing structure
• Coiled design for pneumatic line connections in general air systems
• Tubing returns to its original form after extension
Model :
CN12
Nylon 12 coiled tubing features a coiled structure for pneumatic line connections in general air systems.
During use, the tubing extends with fitting-end movement and returns to its original form after the external force is removed.
During use, the tubing extends with fitting-end movement and returns to its original form after the external force is removed.
Available in inch and mm sizes
Imperial Size (inch)
|
Model Number
|
Hose ID | Hose OD | Total Length | Working Length | Spiral ID | Max. Working pressure 73℉ | Thread | Color | ||
|---|---|---|---|---|---|---|---|---|---|---|
| +Color | inch | inch | ft | ft | inch | psi | NPT | BK | BU | Y |
| CN12A31612FT_ |
3/16 (0.187) |
1/4 (0.250) |
12 | 10 | 2 | 250 | 1/4" Male | ■ | ■ | |
| CN12A31615FT_ | 15 | 12 | ||||||||
| CN12A31620FT_ | 20 | 16 | ||||||||
| CN12A1412FT_ |
1/4 (0.250) |
5/16 (0.312) |
12 | 10 | 3 | 220 | 1/4" Male | ■ | ■ | |
| CN12A1425FT_ | 25 | 20 | ||||||||
| CN12A1430FT_ | 30 | 24 | ||||||||
| CN12A1450FT_ | 50 | 40 | ||||||||
| CN12A51612FT_ |
5/16 (0.312) |
3/8 (0.375) |
12 | 10 | 3 | 175 | 1/4" Male | ■ | ■ | ■ |
| CN12A51625FT_ | 25 | 20 | ||||||||
| CN12A51630FT_ | 30 | 24 | ||||||||
| CN12A51650FT_ | 50 | 40 | ||||||||
| CN12A3812FT_ |
3/8 (0.375) |
15/32 (0.470) |
12 | 10 | 3 | 240 |
1/4" Male 3/8" Male |
■ | ■ | ■ |
| CN12A3825FT_ | 25 | 20 | ||||||||
| CN12A3830FT_ | 30 | 24 | ||||||||
| CN12A3850FT_ | 50 | 40 | ||||||||
| CN12A1212FT_ |
1/2 (0.500) |
5/8 (0.625) |
12 | 10 | 4 | 210 | 1/2" Male | ■ | ■ | |
| CN12A1225FT_ | 25 | 20 | ||||||||
| CN12A1230FT_ | 30 | 24 | ||||||||
| CN12A1250FT_ | 50 | 40 | ||||||||
Metric Size (mm)
|
Model Number
|
Hose OD | Hose ID | Total Length | Working Length | Tool Tail Length | Port Tail Length | Spiral ID | Max. Working pressure 23℃ (73℉) | Thread | Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +Color | mm | mm | m | m | cm | cm | mm | bar | PT/G | BU | R | Y |
| CN12A604M_ | 6 | 4 | 4 | 2.4 |
N/A 50 |
N/A 10 |
60 | 20 | 1/4" Male | ■ | ■ | ■ |
| CN12A606M_ | 6 | 3.6 | ||||||||||
| CN12A608M_ | 8 | 4.8 | ||||||||||
| CN12A804M_ | 8 | 6 | 4 | 2.4 |
N/A 50 |
N/A 10 |
75 | 16 | 1/4" Male | ■ | ■ | ■ |
| CN12A806M_ | 6 | 3.6 | ||||||||||
| CN12A808M_ | 8 | 4.8 | ||||||||||
| CN12A8010M_ | 10 | 6.0 | ||||||||||
| CN12A8012M_ | 12 | 7.2 | ||||||||||
| CN12A8015M_ | 15 | 9.0 | ||||||||||
| CN12A104M_ | 10 | 8 | 4 | 2.4 |
N/A 50 |
N/A 10 |
75 | 15 |
1/4" Male 3/8" Male |
■ | ■ | ■ |
| CN12A106M_ | 6 | 3.6 | ||||||||||
| CN12A108M_ | 8 | 4.8 | ||||||||||
| CN12A1010M_ | 10 | 6.0 | ||||||||||
| CN12A1012M_ | 12 | 7.2 | ||||||||||
| CN12A1015M_ | 15 | 9.0 | ||||||||||
| CN12A126M_ | 12 | 9 | 6 | 3.6 |
N/A 50 |
N/A 10 |
75 | 16 |
1/4" Male 3/8" Male |
■ | ■ | ■ |
| CN12A128M_ | 8 | 4.8 | ||||||||||
| CN12A1210M_ | 10 | 6.0 | ||||||||||
| CN12A1212M_ | 12 | 7.2 | ||||||||||
| CN12A1215M_ | 15 | 9.0 | ||||||||||
• Nylon 12 material
• Low moisture absorption
• Low moisture absorption
• Pneumatic piping applications where environmental humidity variation must be considered
• Air supply connections requiring movement with equipment or tools
• Air supply connections requiring movement with equipment or tools
