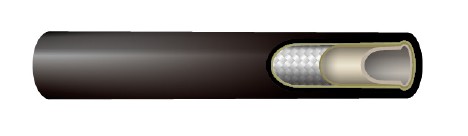

• Hypretex Hydraulic Hose series SAE 100R7

Hypretex Hydraulic Hose series SAE 100R7

Model : SR7

ㆍInner Tube: Polyester elastomer
ㆍReinforcement One or two braided of synthetic fiber
ㆍCover Black high abrasion resistant polyurethane pinpricked cover
ㆍTemperature Range: -40°C ~93°C (-40°F ~200°F) for air and water based fluids

Part Number Size Code
Tube I.D
(inch)
Tube O.D
(inch)
Max. Working Pressure
(psi)
Min. Bursting Pressure
(psi)
Min. Bend Radius
(inch)
Weight
(lbs/ft)
SR7-316 -3 3/16 0.39 3000 12000 0.98 0.04
SR7-14 -4 1/4 0.484 2750 11000 1.38 0.064
SR7-516 -5 5/16 0.555 2500 10000 1.77 0.08
SR7-38 -6 3/8 0.63 2250 9000 2.17 0.097
SR7-12 -8 1/2 0.799 2000 8000 2.95 0.133
SR7-58 -10 5/8 0.961 1500 6000 4.33 0.18
SR7-34 -12 3/4 1.102 1300 5200 5.51 0.22
SR7-88 -16 1 1.39 1000 4000 7.48 0.3

ㆍMeets or exceeds SAE 100R7 standards

ㆍIdeal for general hydraulic services

ㆍLight weight and flexible

ㆍFor hydraulic oil and lubrication lines

ㆍFor medium pressure hydraulic

ㆍAgricultural brake system

ㆍAerial Platforms

ㆍScissor lifts
