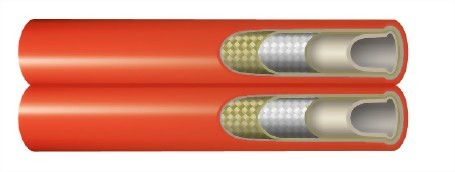

• Hypretex Hydraulic Hose series SAE 100R8 Twin- Line Non-Conductive

Hypretex Hydraulic Hose series SAE 100R8 Twin- Line Non-Conductive

Model : SR82N

ㆍInner Tube: Polyester elastomer

ㆍReinforcement: One or two braided of aramid fiber

ㆍCover: Orange high abrasion resistant polyurethane pinpricked cover

ㆍTemperature Range: -40°C ~93°C (-40°F ~200°F) limited to 70°C for air and water based fluids

Part Number Size Code
Tube I.D
(inch)
Tube O.D
(inch)
Max. Working Pressure
(psi)
Min. Bursting Pressure
(psi)
Min. Bend Radius
(inch)
Weight
(lbs/ft)
SR82N-316 -3 3/16 0.374 5000 20000 1.18 0.037
SR82N-14 -4 1/4 0.476 5000 20000 1.97 0.06
SR82N-516 -5 5/16 0.547 4300 17200 2.17 0.073
SR82N-38 -6 3/8 0.614 4000 16000 2.36 0.087
SR82N-12 -8 1/2 0.748 3500 14000 3.15 0.117

ㆍMeets or exceeds SAE 100R8 standards

ㆍIdeal for general hydraulic services

ㆍLight weight and flexible

ㆍConstruction and agricultural equipment

ㆍForklift Trucks. Articulating and telescopic booms

ㆍGeneral hydraulics-industrial gases

ㆍSafety and rescue equipment

ㆍAerial platforms and Scissor lifts

ㆍCranes-equipment requiring electrical high insulation
