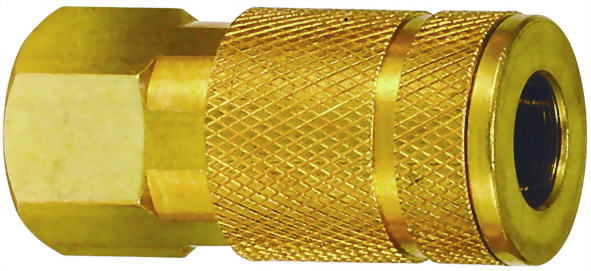

Quick Coupler TC female series
Model :
TC-F
ㆍSHPI T-system quick coupler is extensively used in the U.S.A and Australia.
ㆍTwo touch type design for plug inserting.
ㆍTwo touch type design for plug inserting.
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
| TC20F | 1/4" | 46 | 19 | 11 | 1/4 NPT |
| TC30F | 3/8" | 46 | 19 | 12.5 | 3/8 NPT |
| TC40F | 1/2" | 48.5 | 24 | 14 | 1/2 NPT |
ㆍTwo touch type
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir piping
ㆍAir pressure equipment
ㆍAir piping
ㆍAir pressure equipment
