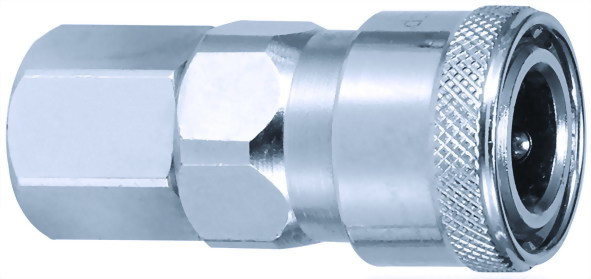

Quick Coupler NC female series
Model :
NC-F
ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
| NC20F | 1/4" | 51.7 | 19 | 13 | 1/4 PT |
| NC30F | 3/8" | 52.7 | 21 | 14 | 3/8 PT |
| NC40F | 1/2" | 54.2 | 24 | 15 | 1/2 PT |
ㆍTwo touch type/ Traditional type
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
