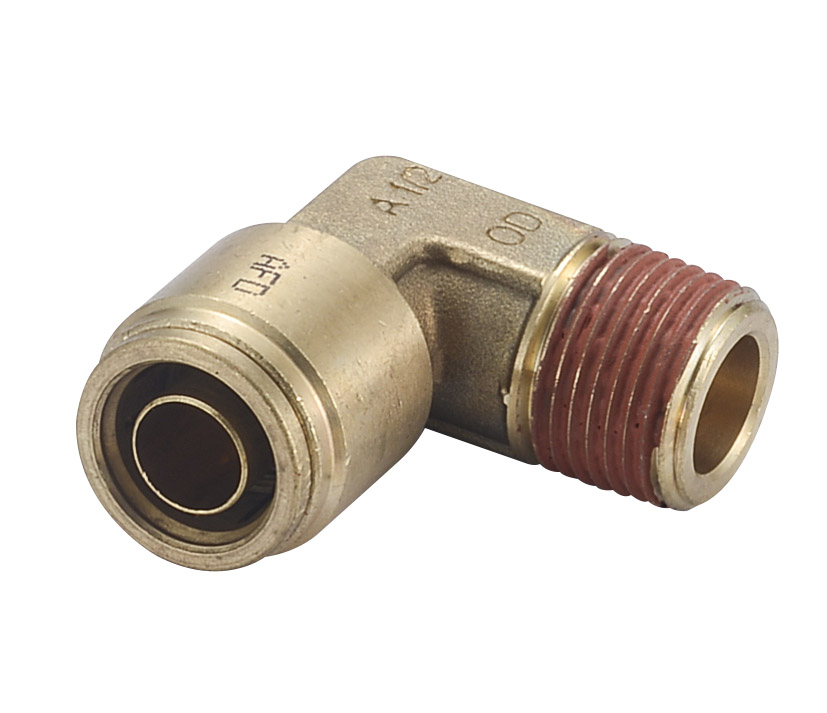

DOT Push-in Fitting Union Elbow M65 Series
Model :
DOT-M65
ㆍWorking pressure: up to 150 psi
ㆍWorking temperature range:-40°F to +200°F
ㆍThreads: NPTF Standard. For other threads standards consult factory
ㆍWorking temperature range:-40°F to +200°F
ㆍThreads: NPTF Standard. For other threads standards consult factory
| Model Number | Tube O.D |
| 35-M6504 | 4 mm |
| 35-M6506 | 6 mm |
| 35-M6508 | 8 mm |
| 35-M6510 | 10 mm |
| 35-M6512 | 12 mm |
ㆍSHPI's D.O.T. Air brake fittings manufacturing meets D.O.T. FMVSS 571.106
ㆍAir brake specifications and SAE J2494 standards.
ㆍMachined from C3600/C3700 brass alloy
ㆍPre-applied thread sealant on all male pipe threads
ㆍOne-touch connection reduces installation time and cost
ㆍVarious shapes and configurations to meet vehicle applications and make installation easier
ㆍAir brake specifications and SAE J2494 standards.
ㆍMachined from C3600/C3700 brass alloy
ㆍPre-applied thread sealant on all male pipe threads
ㆍOne-touch connection reduces installation time and cost
ㆍVarious shapes and configurations to meet vehicle applications and make installation easier
ㆍRecommended Tubing: SAE J844 nonmetallic air brake systems
