• F.R.L GFCS 400 Series Combination

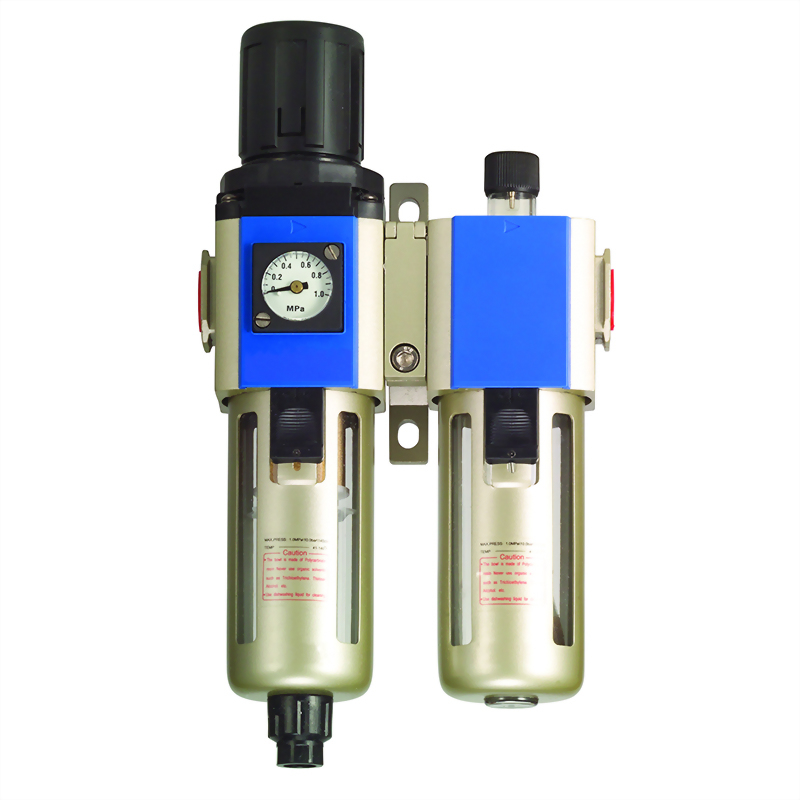

F.R.L GFCS 400 Series Combination

Model : GFCS-400

ㆍQuick and reliable fixation makes it convenient to install and use.

ㆍThe performance of pressure adjustment is reliable with high precision.

ㆍThe efficiency of eliminating moisture and solid grain is high.

ㆍThree drain types are available: manual drain, semi-auto drain and automatic drain.

Model Number Fluid Port Size Filtering Grade Pressure Range Max Pressure Proof Pressure Temperature Drain Bowl Capacity Oil Bowl Capacity Weight
GFCS 400-10 Air 3/8" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 80cc 160cc 1950g
GFCS 400-15 Air 1/2" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 80cc 160cc 1950g

Item / Model GFCS 400
Body Aluminum Alloy
Umbrella Baffle POM
Air Guider POM
Filter Element 40µ: Tin Copper ; 5µ: Fiber
Drain Bowl PC
Leak Post POM
Pressure Knob POM
Adjusting Seat POM
Adjusting Spindle HPB59-1
Diaphragm SUS304 covered with rubber
Pressure Spring Stainless Steel
Spring Stainless Steel
Filling Plug Brass
Bowl PC
Ejector Pin Brass
Oil Bowl PC
Bowl Guard SPCC

ㆍUse pneumatic tools and equipment.

ㆍRequire clean air to be delivered to your facility or workplace.
