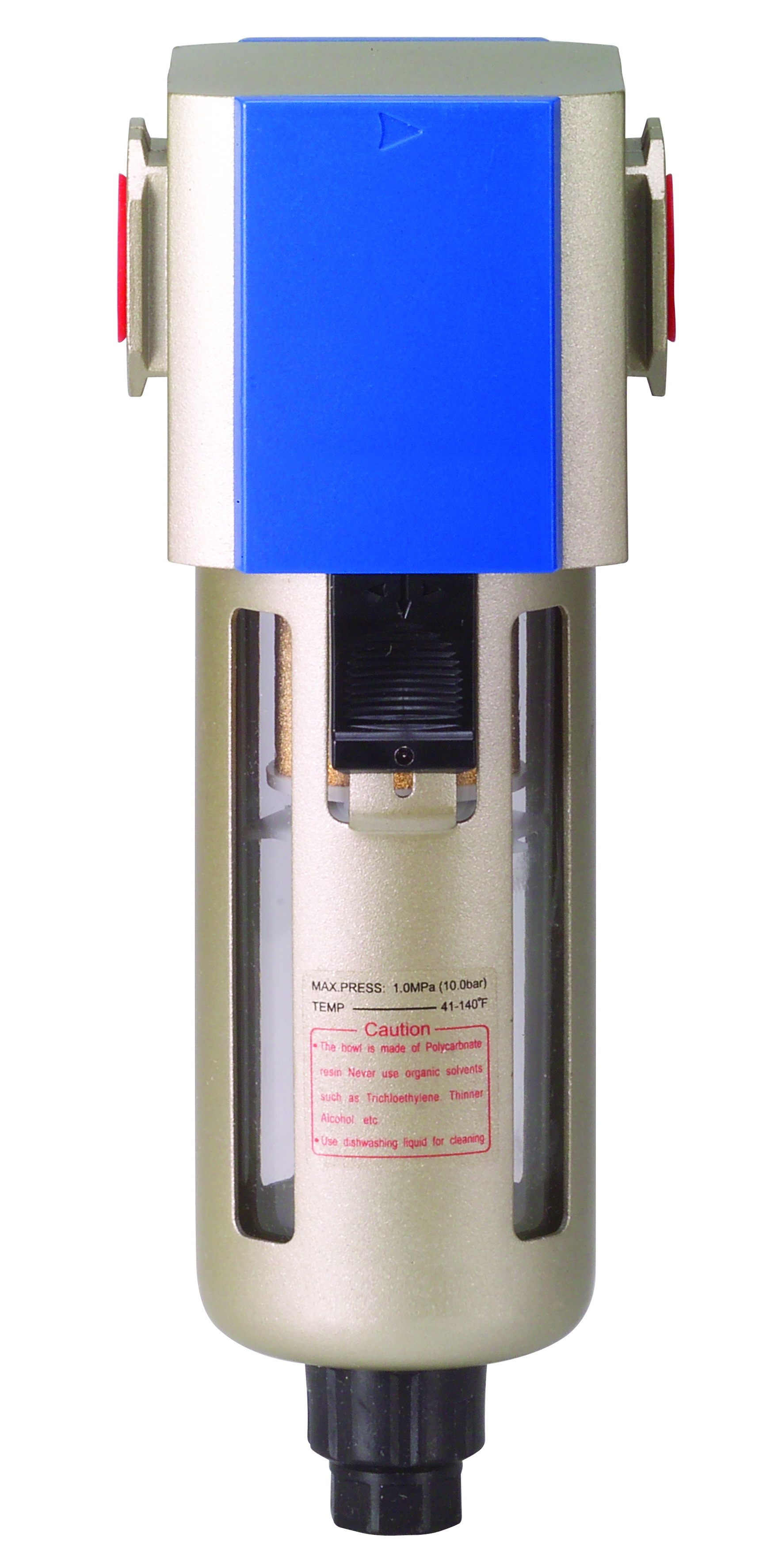

• F.R.L GFS 300 Series Filter

F.R.L GFS 300 Series Filter

Model : GFS-300

ㆍUnique diversion structure makes air flowing through properly rotate, which can more effectively separate the liquid from gas and reliably filter the solid grain.

ㆍIt has low pressure loss, high efficiency in separating water and large drain bowl capacity.

ㆍ Filtering grade includes 5 um and 40 um (optional).

ㆍThree drain types are available: manual drain, semi-auto drain and automatic drain.

ㆍThe bracket can be selected for installation.

Model Number Fluid Port Size Filtering Grade Pressure Range Max Pressure Proof Pressure Temperature Drain Bowl Capacity Weight
GFS 300-08 Air 1/4" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 40cc 360g
GFS 300-10 Air 3/8" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 40cc 360g
GFS 300-15 Air 1/2" 40µ, 5µ 1.5 - 9 Bar 10 Bar 15 Bar 5 - 60°C 40cc 360g

Item / Model GFS 300
Body Aluminum Alloy
Umbrella Baffle POM
Air Guider POM
Filter Element 40µ: Tin Copper ; 5µ: Fiber
Drain Bowl PC
Bowl Guard SPCC

ㆍUse pneumatic tools and equipment.

ㆍRequire clean air to be delivered to your facility or workplace.
