• Quick Coupler 40MC hose barb series

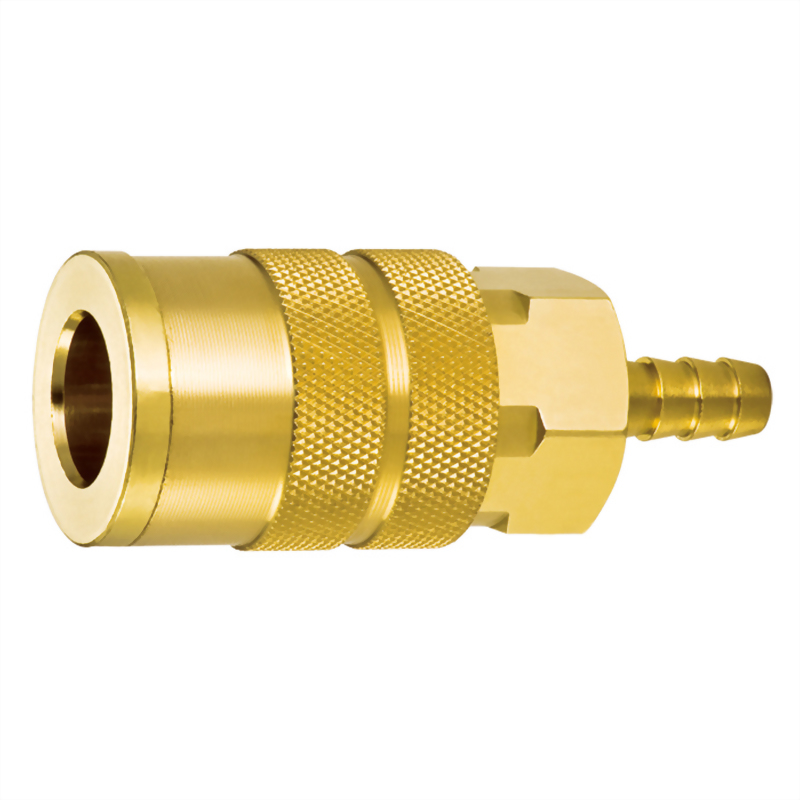

Quick Coupler 40MC hose barb series

Model : 40MC-H

ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.


Model Number Application
ØT
(mm)
ØB
(mm)
40MC20H 1/4" 7 4
40MC25H 5/16" 9 5.7
40MC30H 3/8" 10.5 7
40MC40H 1/2" 13.5 9.5

ㆍTwo touch type
ㆍ1/2" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI

ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
