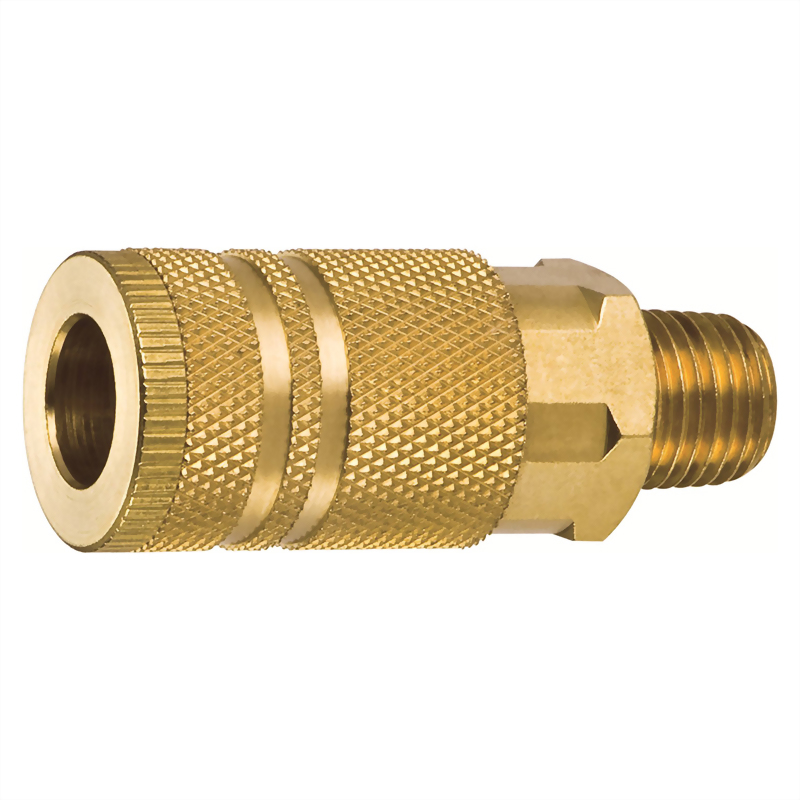

Quick Coupler MIC male series
Model :
MIC-M
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
T
(Thread)
|
ØB
(mm)
|
| MIC20M | 1/4" | 53 | 19 | 11 | 1/4 NPT | 8 |
| MIC30M | 3/8" | 54.5 | 19 | 12.5 | 3/8 NPT | 11 |
| MIC40M | 1/2" | 56 | 21 | 14 | 1/2 NPT | 14 |
ㆍTwo touch type
ㆍ1/4" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍ1/4" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
