• Quick Coupler MIC female series

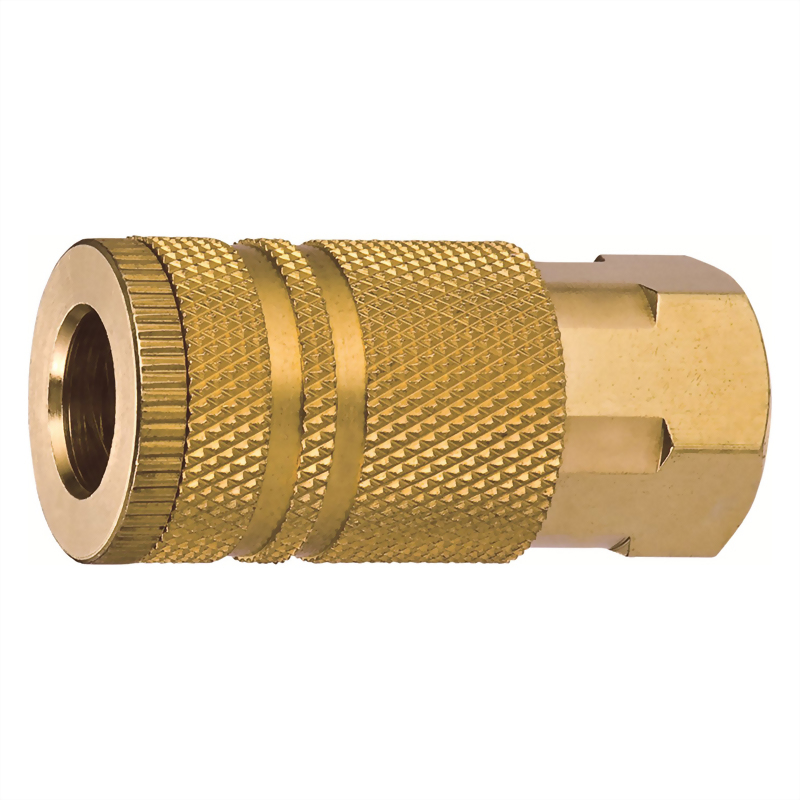

Quick Coupler MIC female series

Model : MIC-F

ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.


Model Number Application
L
(mm)
H (Hex)
(mm)
A
(mm)
T
(Thread)
MIC20F 1/4" 46.7 19 11 1/4 NPT
MIC30F 3/8" 49 19 12.5 3/8 NPT
MIC40F 1/2" 52 21 14 1/2 NPT



ㆍTwo touch type
ㆍ1/4" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
