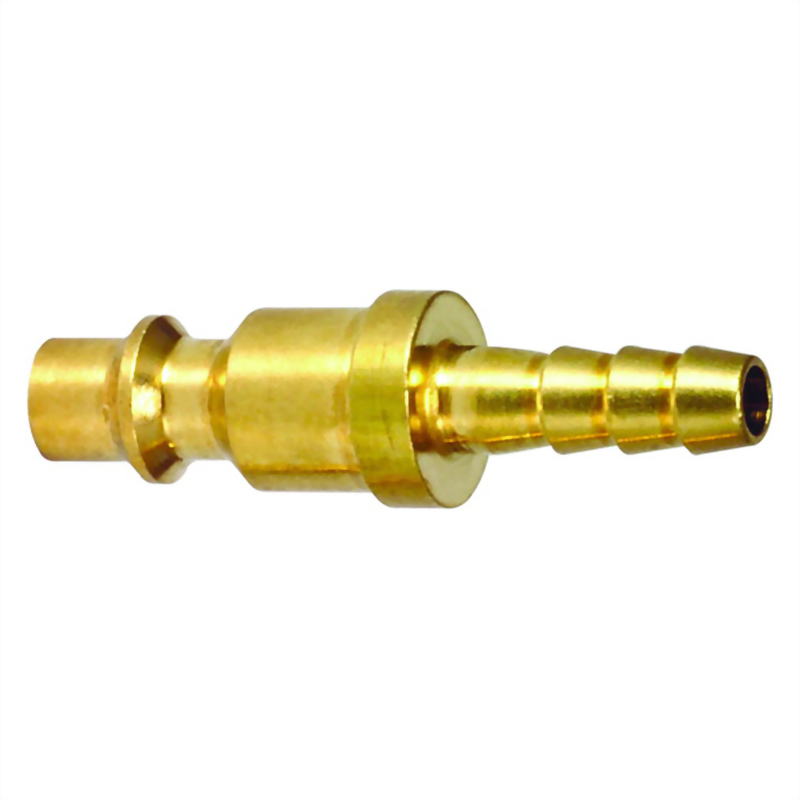

Quick Plug MP hose barb series
Model :
MP-H
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
L
(mm)
|
ØH
(mm)
|
A
(mm)
|
ØT
(mm)
|
ØB
(mm)
|
| MP20H | 1/4" | 49.2 | 13.5 | 21 | 7.2 | 4 |
| MP25H | 5/16" | 49.2 | 13.5 | 21 | 9 | 5.7 |
| MP30H | 3/8" | 51.2 | 13.5 | 23 | 10.5 | 7 |
| MP40H | 1/2" | 56.2 | 16 | 28 | 13.5 | 9.5 |
ㆍPlugs are matched to MC. MIC. MOC 1/4" body system quick coupler.
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
