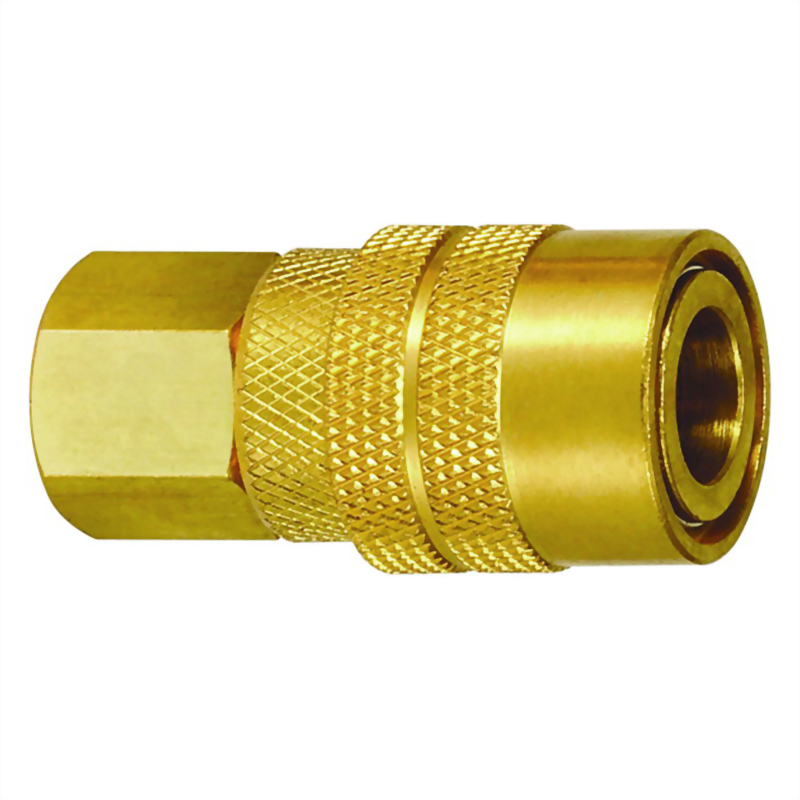

Quick Coupler MC female series

Model : MC-F

ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.

Model Number Application
L
(mm)
H (Hex)
(mm)
A
(mm)
T
(Thread)
MC20F 1/4" 46.5 17.5 11 1/4 NPT
MC30F 3/8" 48.5 19 12.5 3/8 NPT
MC40F 1/2" 49.5 24 14 1/2 NPT

ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
