• Quick Plug 30MOC female series

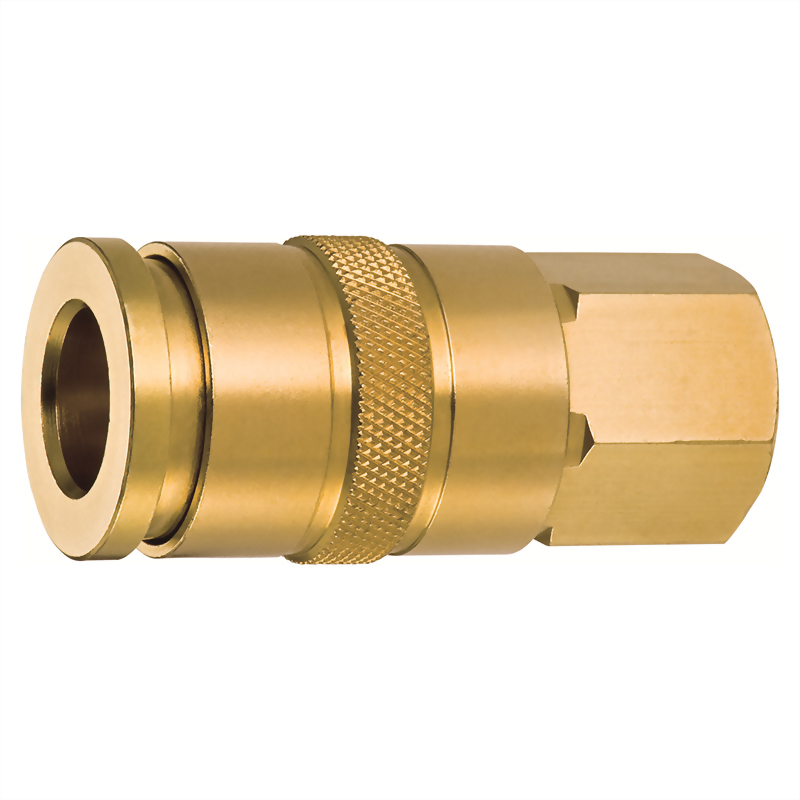

Quick Plug 30MOC female series

Model : 30MOC-F

ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.

Model Number Application
L
(mm)
A
(mm)
T
(Thread)
30MOC20F 1/4" 55.5 13 1/4 NPT
30MOC30F 3/8" 57 14.5 3/8 NPT

ㆍOne touch type
ㆍ3/8" body
ㆍBrass material
ㆍMax. working pressure: 300 PSI

ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
