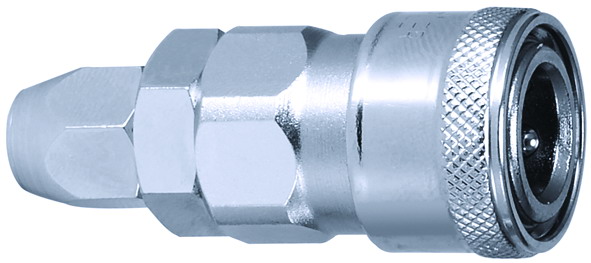

Quick Plug NP plug swivel series
Model :
NP-PS
ㆍFor Japanese market, Asia, Russia, India, Brazil, New Zealand and Australia all use considerable quantities of this system.
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
ㆍA.K.A. :
Air Quick Coupler / Quick Disconnect Coupling
Quick Disconnector / Quick Connect
Air Quick Coupling / Air Connectors & fitting
Quick coupling / Pneumatic couplings
| Model Number | Application |
L
(mm)
|
T (Hex)
(mm)
|
A
(mm)
|
ØB
(mm)
|
| NP20PS | 5mm*8mm | 49 | 14 | 14 | 4 |
| NP30PS | 6.5mm*10mm | 53.5 | 5/8 | 18.5 | 5 |
| NP40PS | 8mm*12mm | 55 | 19 | 20 | 6.5 |
| NP45PS | 8.5mm*12mm | 55 | 19 | 20 | 6.5 |
ㆍSteel material with plated finish
ㆍMax. working pressure: 300 PSI
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
ㆍAir hose/ tube
ㆍAir pressure equipment
