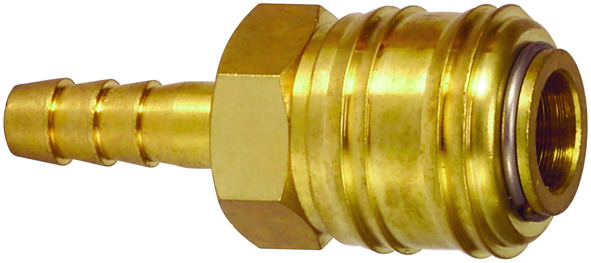

Quick Plug OP hose barb series
Model :
OP-H
ㆍSHPI European System quick coupler is extensively used in the European market and other areas.
(such as Russia, Eastern European countries and certain regions in the U.S.A.)
ㆍPush-in one touch type inserting method.
| Model Number | Application |
L
(mm)
|
H (Hex)
(mm)
|
A
(mm)
|
ØT
(mm)
|
ØB
(mm)
|
| OP20H | 1/4" | 46 | 13.5 | 21 | 7 | 4 |
| OP25H | 5/16 | 46 | 13.5 | 21 | 9 | 5.7 |
| OP30H | 3/8" | 48 | 13.5 | 23 | 10.5 | 7 |
| OP40H | 1/2" | 51 | 16 | 28 | 13.5 | 9.5 |
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir piping
ㆍAir pressure equipment
