Polyethylene Tubing LDPE

※ Click the product image to view more specs and technical details.

ㆍLow-pressure transfer applications
ㆍNon-dynamic operating conditions

Model : LDPE

Q'ty :

LDPE tubing is manufactured from low density polyethylene (LDPE) material.
It is intended for low-pressure transfer applications under non-dynamic operating conditions.

LDPE tubing is typically used in systems where the tubing remains fixed after installation and is not subjected to repeated mechanical motion during operation.
This material is not designed for high-pressure service, pressure fluctuations, or cyclic bending loads.

Final material selection should be based on SHPI product specifications and actual operating conditions.

Available in inch and mm sizes

Imperial Size (in)

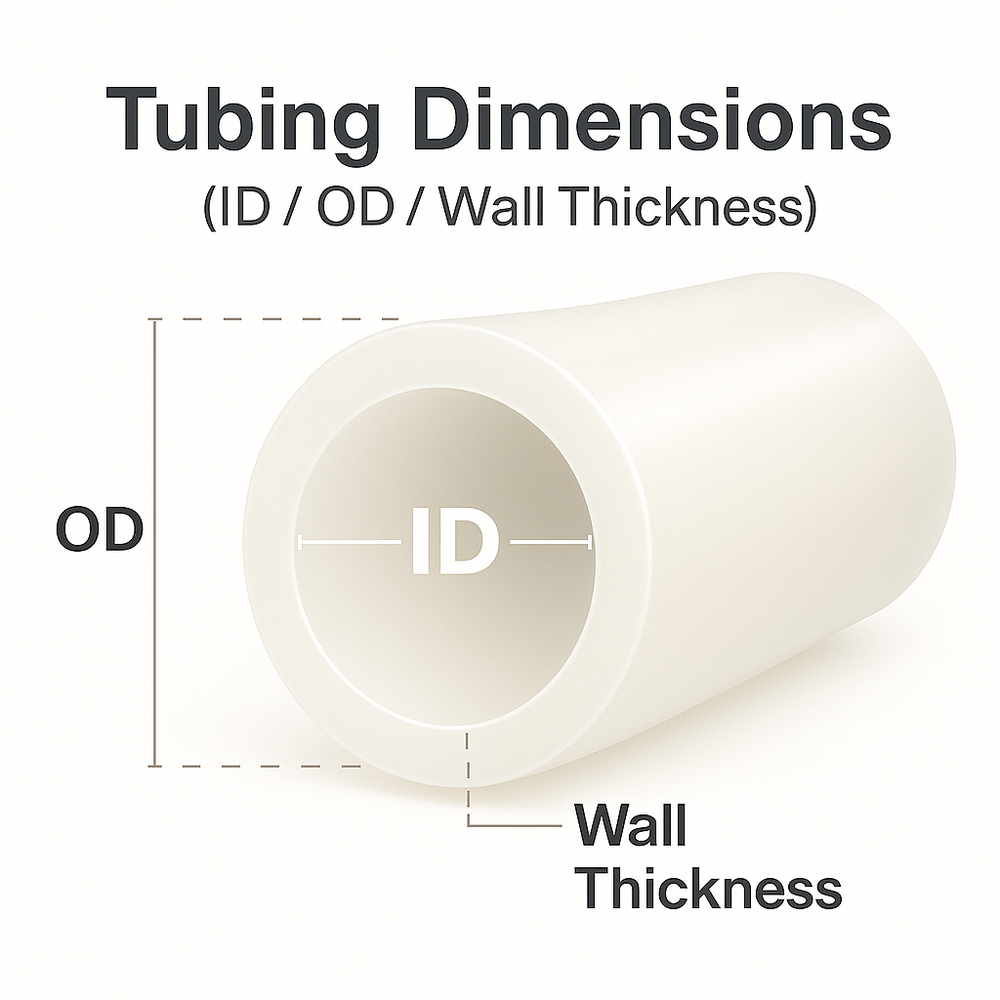

Part Number	Tube OD	Tube ID	Wall Thickness	Weight	Max. Working Pressure 73°F	Min. Burst Pressure 73°F	Min. Bend Radius	Packing Length	Color
+Color	inch	inch	inch	lb/ft	psi	psi	inch	ft	NA	BK	BU	G	R	OR	Y
LDPE18062100FT_	1/8	0.062	0.03	0.004	305	915	0.13	100	□	■	■	■	■	■
LDPE18062500FT_								500
LDPE180621000FT_								1000
LDPE180622500FT_								2500
LDPE18080100FT_	1/8	0.080	0.02	0.003	250	750	0.15	100	□	■	■	■	■	■
LDPE18080500FT_								500
LDPE180801000FT_								1000
LDPE180802500FT_								2500
LDPE532106100FT_	5/32	0.106	0.03	0.004	180	540	1.00	100	□	■	■	■	■	■	■
LDPE532106500FT_								500
LDPE5321061000FT_								1000
LDPE5321062500FT_								2500
LDPE14125100FT_	1/4	0.125	0.06	0.015	350	1050	1.00	100	□	■
LDPE14125500FT_								500
LDPE141251000FT_								1000
LDPE14170100FT_	1/4	0.170	0.04	0.011	150	450	1.25	100	□	■	■	■	■	■	■
LDPE14170500FT_								500
LDPE141701000FT_								1000
LDPE516187100FT_	5/16	0.187	0.06	0.020	150	450	1.50	100	□	■	■	■	■	■	■
LDPE516187500FT_								500
LDPE5161871000FT_								1000
LDPE516232100FT_	5/16	0.232	0.04	0.014	150	450	1.50	100	□	■
LDPE516232500FT_								500
LDPE5162321000FT_								1000
LDPE38250100FT_	3/8	0.250	0.06	0.025	190	570	2.00	100	□	■	■	■	■	■	■
LDPE38250500FT_								500
LDPE382501000FT_								1000
LDPE38275100FT_	3/8	0.275	0.05	0.021	150	450	2.50	100	□	■
LDPE38275500FT_								500
LDPE382751000FT_								1000
LDPE12375100FT_	1/2	0.375	0.06	0.035	125	375	2.50	100	□	■
LDPE12375250FT_								250
LDPE12375500FT_								500
LDPE58500100FT_	5/8	0.500	0.06	0.046	100	300	3.00	100	□	■
LDPE58500300FT_	5/8	0.500	0.06	0.046	100	300	3.00	300	□	■
LDPE34625100FT_	3/4	0.625	0.06	0.056	100	300	4.00	100	□	■
LDPE34625250FT_	3/4	0.625	0.06	0.056	100	300	4.00	250	□	■

Metric Size (mm)

Part Number	Tube OD	Tube ID	Wall Thickness	Weight	Max. Working Pressure 23°C (73°F)	Min. Burst Pressure 23°C (73°F)	Min. Bend Radius	Packing Length	Color
+Color	mm	mm	mm	g/m	bar	bar	mm	m	NA	BK	BU
LDPE402025M_	4	2	1.00	8.9	21	63	15	25	□	■	■
LDPE402050M_								50
LDPE4020100M_								100
LDPE402525M_	4	2.5	0.75	7.3	14	42	25	25	□	■	■
LDPE402550M_								50
LDPE4025100M_								100
LDPE604025M_	6	4	1.00	14.9	12	36	40	25	□	■	■
LDPE604050M_								50
LDPE6040100M_								100
LDPE806025M_	8	6	1.00	20.9	9	27	70	25	□	■	■
LDPE806050M_								50
LDPE8060100M_								100
LDPE107025M_	10	7	1.50	38.0	11	33	75	25	□	■	■
LDPE107050M_								50
LDPE1070100M_								100
LDPE107525M_	10	7.5	1.25	32.6	9	27	70	25	□	■	■
LDPE107550M_								50
LDPE1075100M_								100
LDPE108025M_	10	8	1.00	26.8	7	21	115	25	□	■	■
LDPE108050M_								50
LDPE1080100M_								100
LDPE129025M_	12	9	1.50	47.0	9	27	105	25	□	■	■
LDPE129050M_								50
LDPE1290100M_								100
LDPE121025M_	12	10	1.00	32.8	5	15	165	25	□	■	■
LDPE121050M_								50
LDPE1210100M_								100

ㆍFixed tubing installation
Intended for routing configurations where tubing does not move with machine components

ㆍLightweight tubing structure
Suitable for internal equipment routing and auxiliary line applications

ㆍFlow visibility (natural color)
Allows visual inspection of internal media, depending on material color configuration

ㆍFixed internal equipment tubing
ㆍLow-pressure liquid transfer lines
ㆍAuxiliary low-pressure air lines
ㆍLaboratory and analytical equipment tubing
ㆍCleaning system fluid transfer lines
