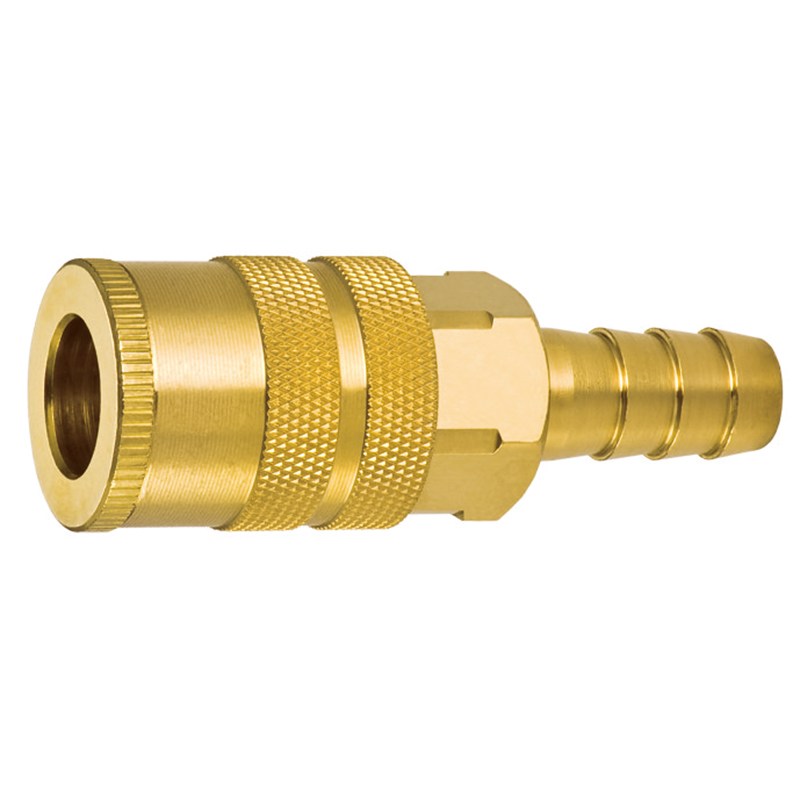

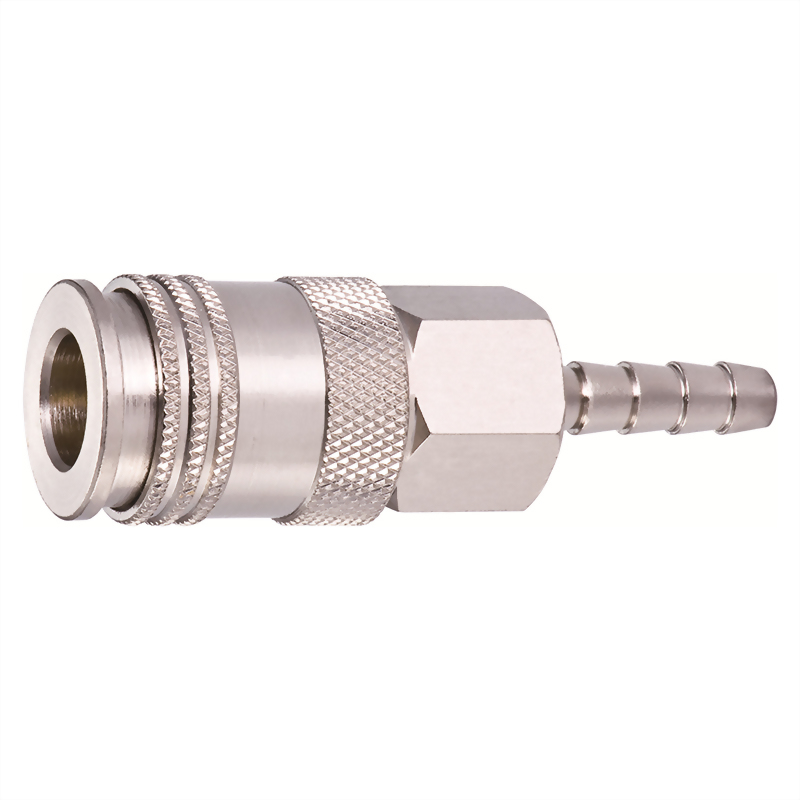

Quick Coupler MOC hose barb series
Model :
MOC-H
ㆍM-system quick coupler is extensively used in the US market and other areas (Middle East, France, Spain and South America).
ㆍM-system quick coupler includes traditional two touch type and push-in one touch type.
ㆍPush-in one touch type couplers are available for 1/4" ,3/8" and 1/2" body for different flow requirements.
| Model Number | Application |
ØT
(mm)
|
ØB
(mm)
|
| MOC20H | 1/4" | 7 | 4 |
| MOC30H | 3/8" | 10.5 | 7 |
| MOC40H | 1/2" | 13.5 | 9.5 |
ㆍOne touch type
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir hose/ tube
ㆍAir pressure equipment
